INTERBUS IBS S7 300 BC-T Phoenix Contact Controller Card

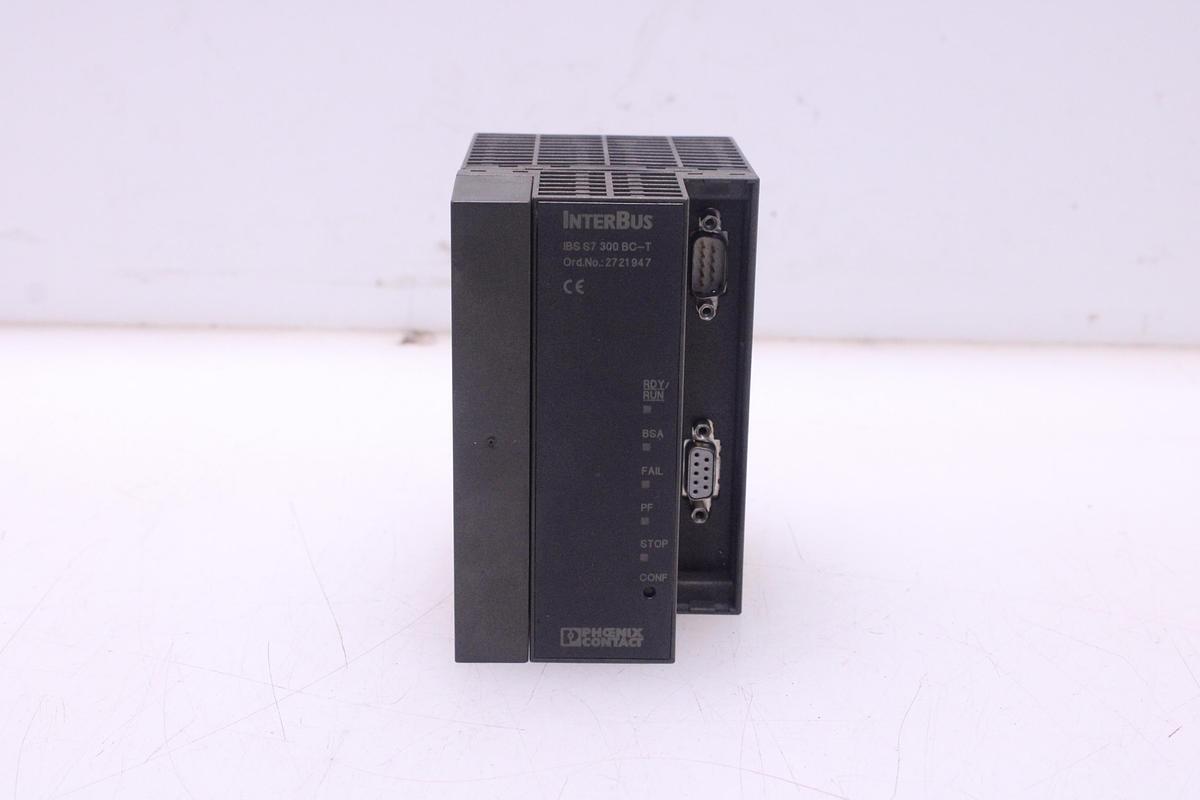

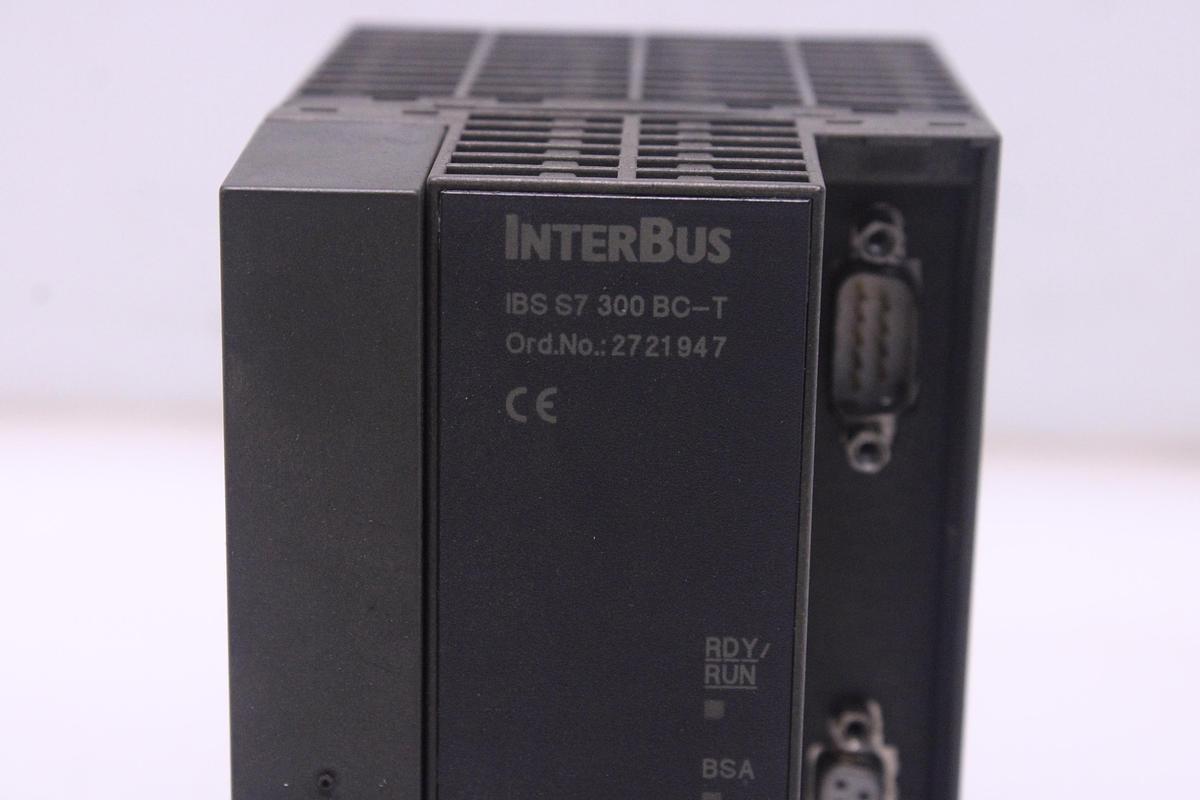

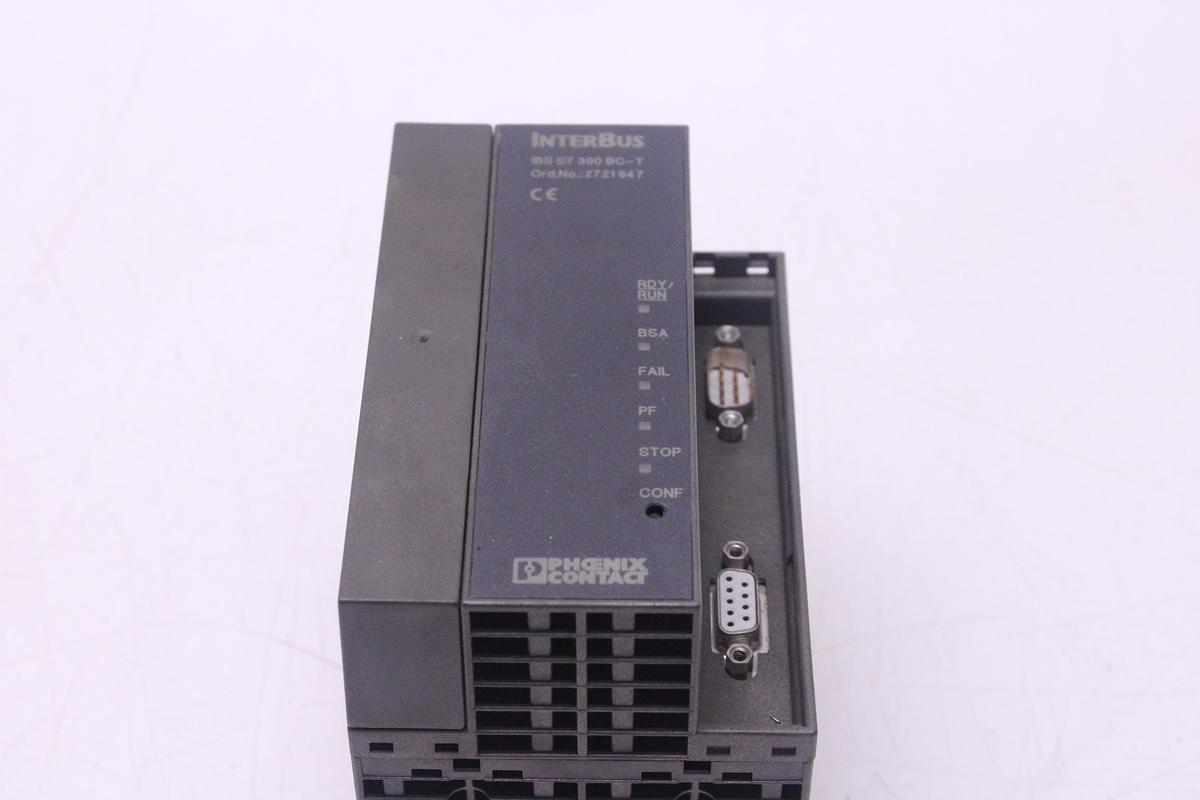

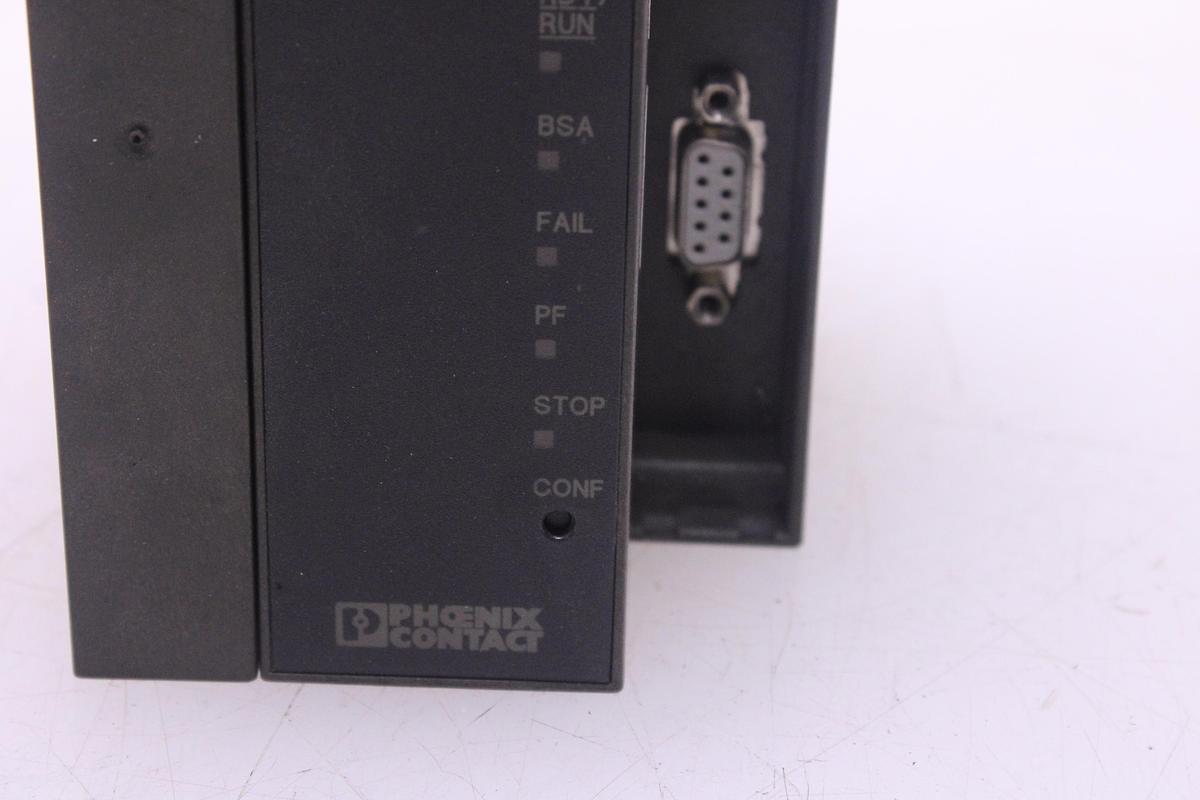

INTERBUS IBS S7 300 BC-T Phoenix Contact Controller Card The IBS S7 300 BC-T is a termination/controller board developed by Phoenix Contact for Connect SIMATIC S7-300 PLCs to the INTERBUS system, facilitating modular interfaces in automation environments industrial. Specifications: INTERBUS I/O Data: * Areas occupied in PLC memory: 16 bytes of inputs and 16 bytes of outputs. * INTERBUS data capacity: 240 bytes. “Plug & Play” startup: The INTERBUS configuration is automatically loaded when the module is powered on. Local diagnostics: Front LEDs indicate RDY/RUN, PF, BSA, FAIL, and STOP; diagnostic logs are also accessible. from the PLC. Interfaces: * INTERBUS: 9-pin D-SUB connector; supports up to 2 Mbps (also speeds of 500 kbps). * RS-232-C (diagnostic/configuration): D-SUB male connector Food and consumption: * 24 V DC from the I/O bus. * Typical current: ~415 mA. * Maximum dissipated power: 10 W. Dimensions: approx. 80 × 125 × 110 mm (W × H × D)
