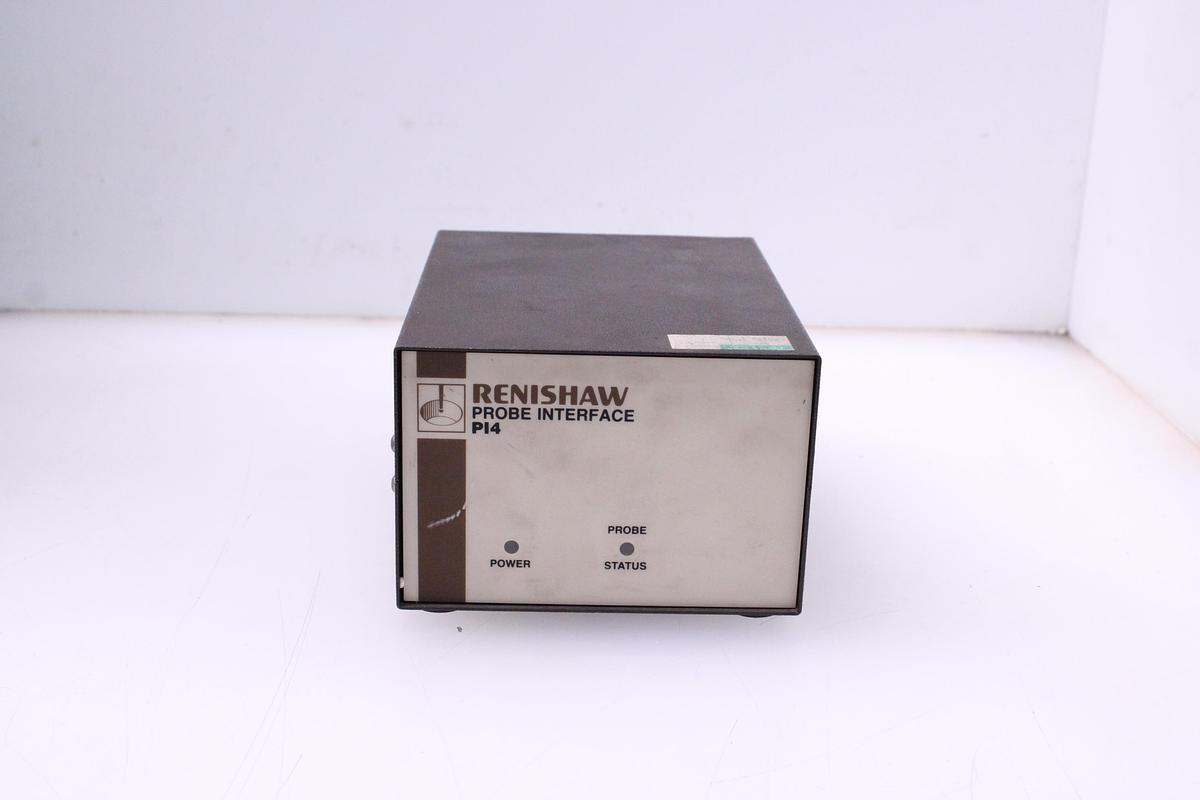

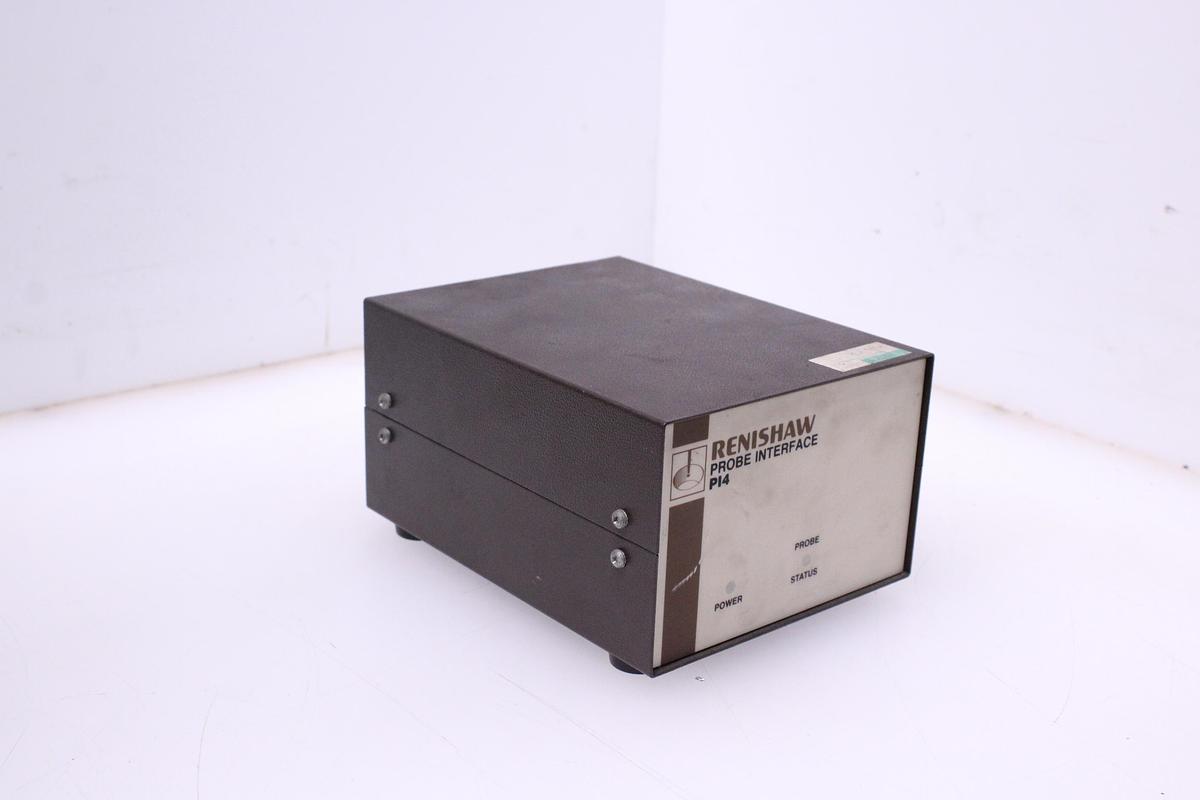

Renishaw PI4 Probe Interface for Probes

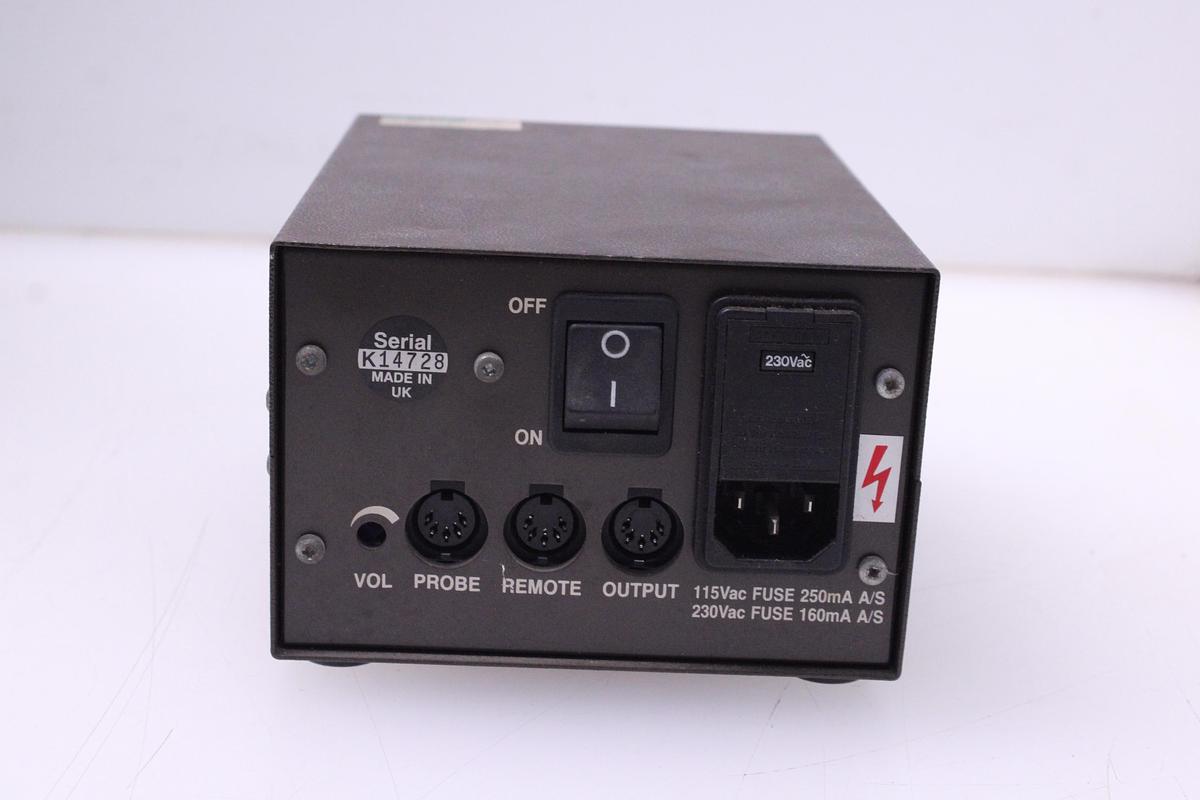

Interface for Renishaw PI4 Probe Interface probes Features: The PI4 is an interface unit for Renishaw traditional touch probes that conditions and processes the probe signal before sending it to the CMM controller USE AND COMPATIBILITY * Use: Interface for conventional Renishaw touch probes. Renishaw * Typical compatibility (PI4-2): * TP1, TP2, TP6, TP6A, TP20, MH20, MH20i. Ekpo CONNECTIVITY AND OUTPUTS * Probe input: D-type connector (multi-pin) to receive probe signals. Ekpo * Configurable outputs (depending on version): * PICS (Product Interconnection System) – digital signal for controller. Ekpo * SSR (Solid State Relay) – solid-state relay output for machine interfaces. Ekpo * TTL / OCT / binary lines depending on original PI4 version and internal configuration. Scribd DIMENSIONS (BASED ON PI4-2 AS CURRENT EXAMPLE) * Height: ~88 mm * Width: ~146 mm * Depth: ~183–208 mm
