Kondia ZM 99 MF CNC Machining Center, FANUC - 4 Axes
Kondia ZM 99 MF CNC Machining Center, FANUC - 4 Axes
or
Call +34 973 449 021
Description

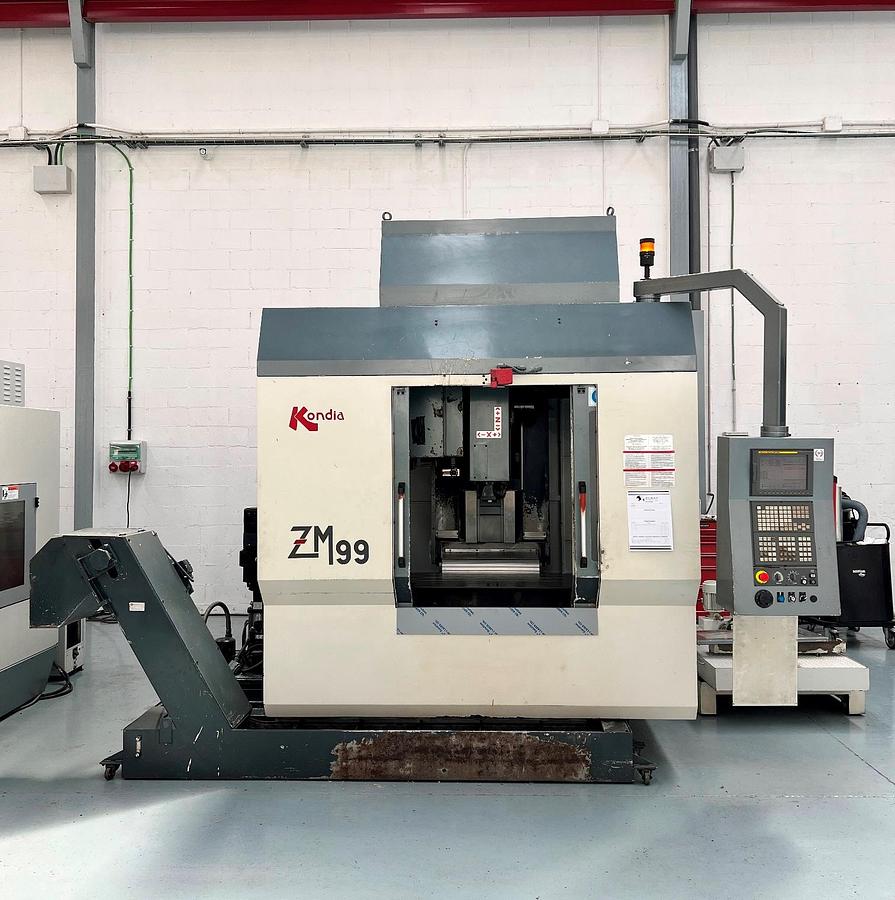

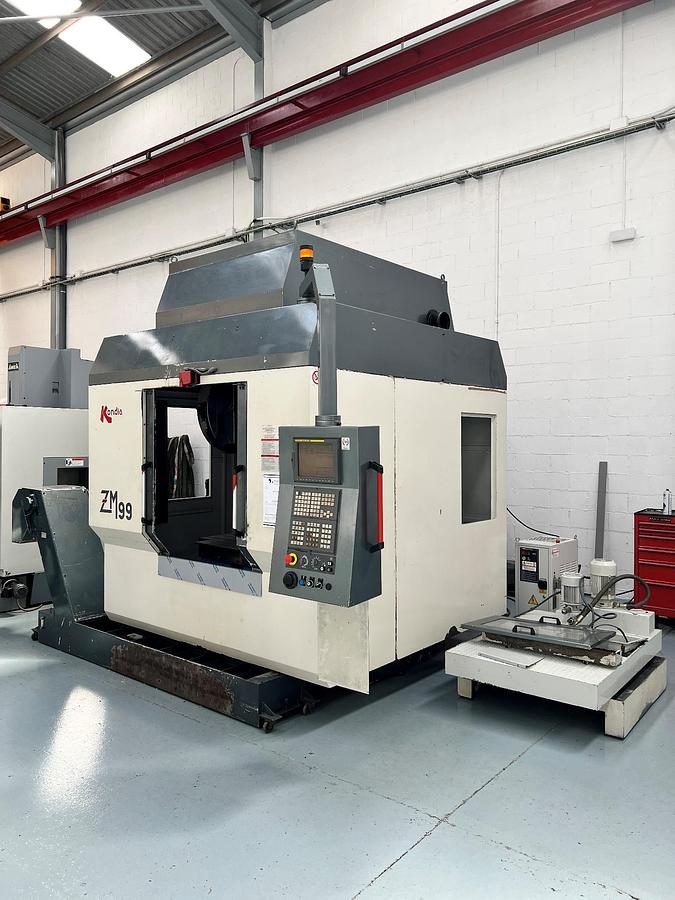

Used KONDIA ZM 99 MF machining center with FANUC CNC and electronic 4th axis
Used machining center

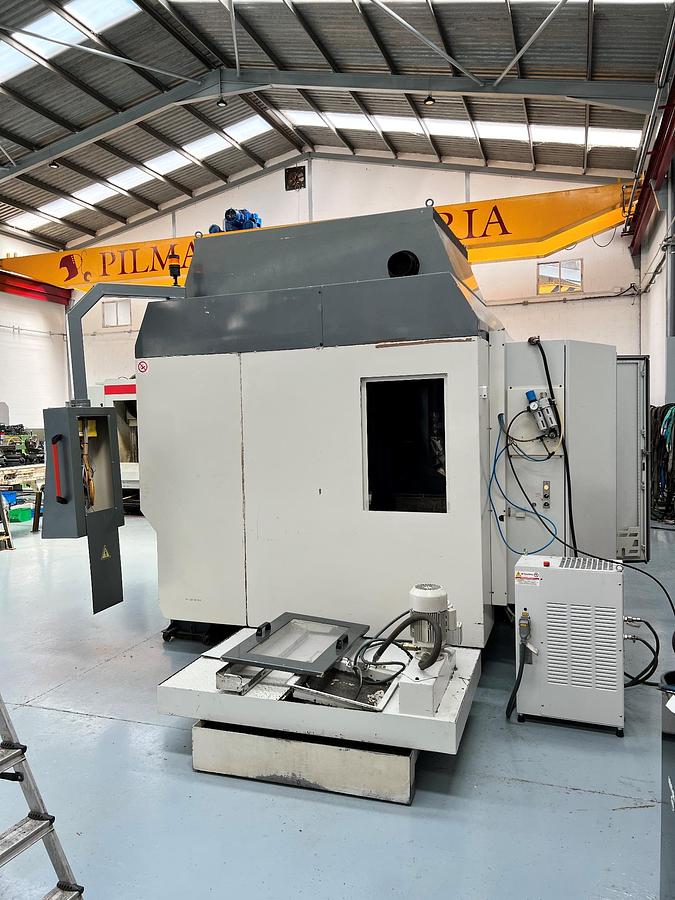

Features a 4th axis controlled by a TSUDAKOMA RN-200B CNC.
Head:
ISO 40
Automatic tool changer:
Precision:

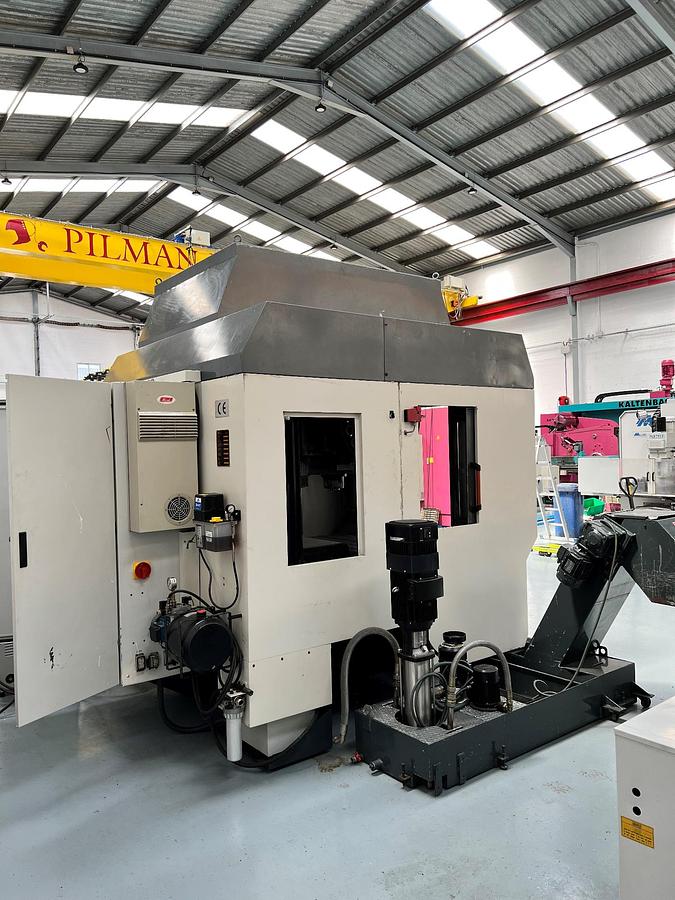

Has a chip extractor.
Includes a vice.
Includes ISO 40 tools.
*See photos
Specifications
| Manufacturer | KONDIA |
| Model | ZM 99 MF (Motor directo) |
| Year | 2003 |
| Condition | Used |
| Stock Number | PUNHID6063687035 |
| Power | 20KW |
| Weight | 5.700kg |

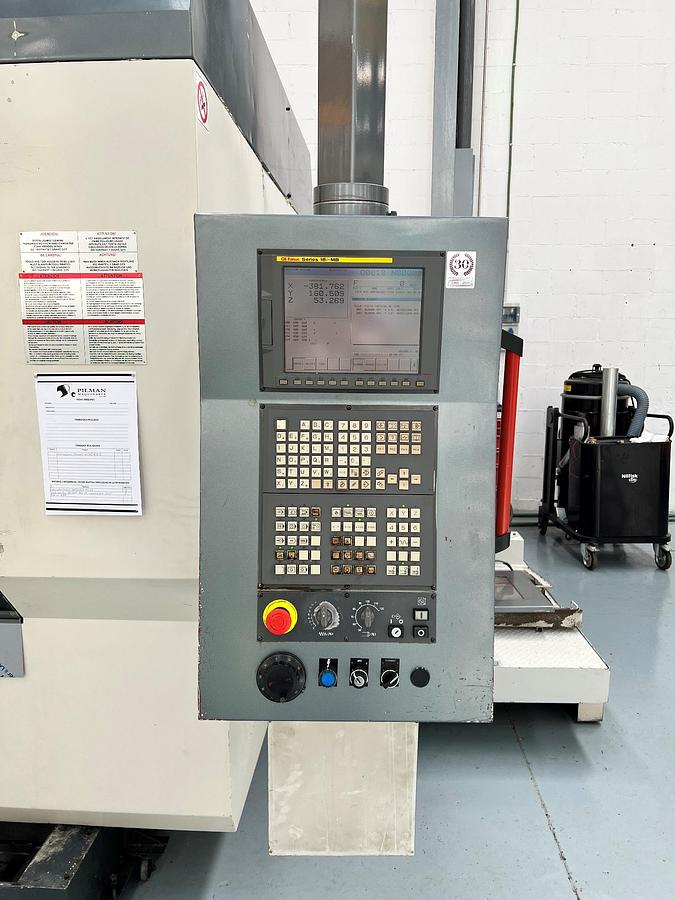

| Cnc | GE FANUC Series 18i-MB |

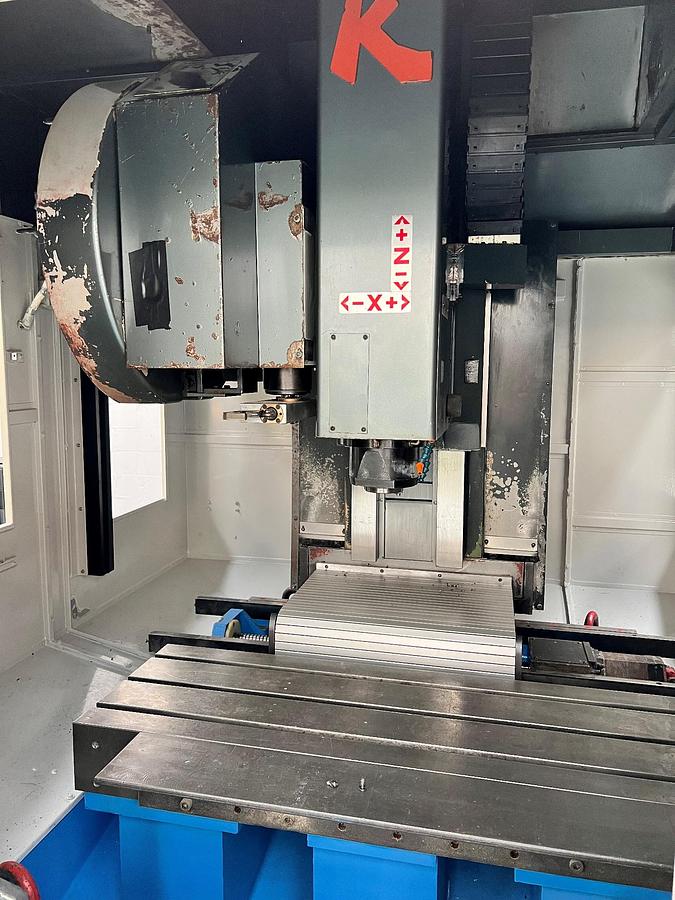

| Table dimensions | 1200x400mm |
| X, Y, Z paths | 600x400x510mm |
| Rapid advance on X-Y axes | 36,000mm/min. |
| Rapid traverse on X-Y axes | 36.000mm/min. |
| Rapid traverse on Z-axis | 30.000mm/min. |
| Rapid advance on the Z axis | 30,000mm/min. |
| Work progress | 5,000mm/min |
| Speed range | 15,000 rpm |
| Maximum distance spindle to table | 660mm |
| Maximum distance from spindle to table | 660mm |
| Number of tools | 20 |
| Type of selection | RANDOM |
| Selection type | RANDOM |
| Maximum tool length | 225mm |
| Maximum tool weight | 6kg. |
| - Positioning accuracy | 0,01mm |
| X, y, z paths | 600x400x510mm |
| Rapid traverse on x-y axes | 36.000mm/min. |
| - Repeatability accuracy | 0,005mm |
| - Resolution | 0,001mm |
| Rapid traverse on z-axis | 30.000mm/min. |
| - Accuracy repeatability | 0,005mm |
| - positioning accuracy | 0,01mm |
| - accuracy repeatability | 0,005mm |
| - resolution | 0,001mm |
