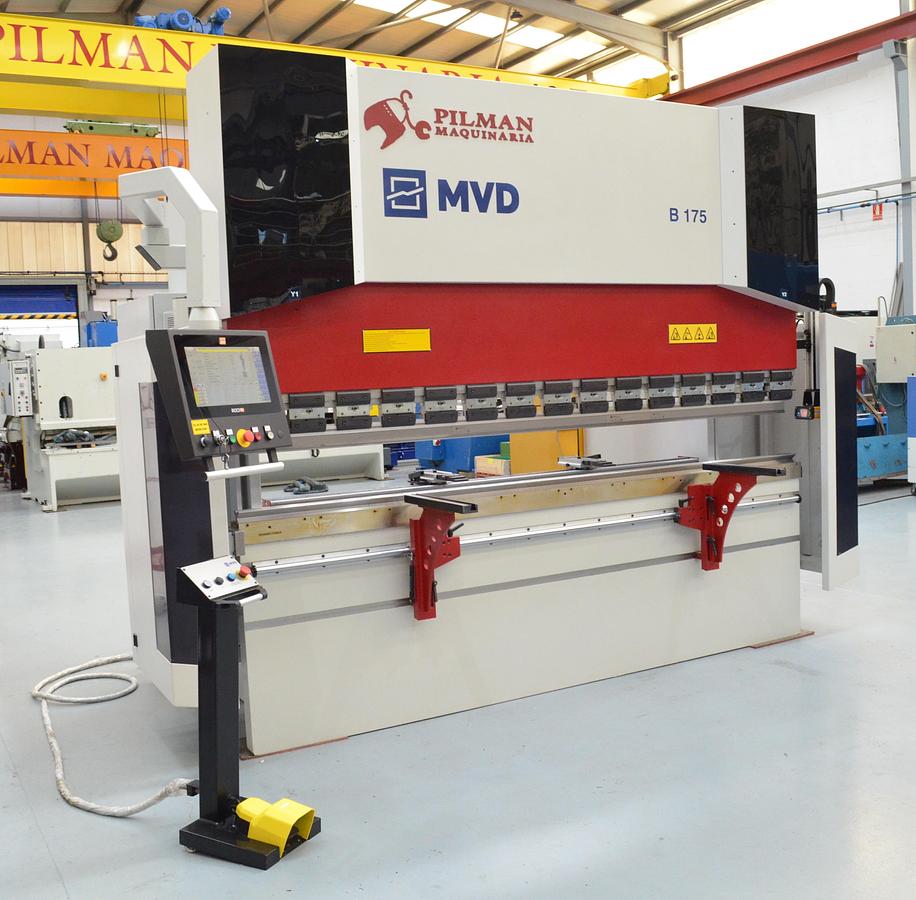

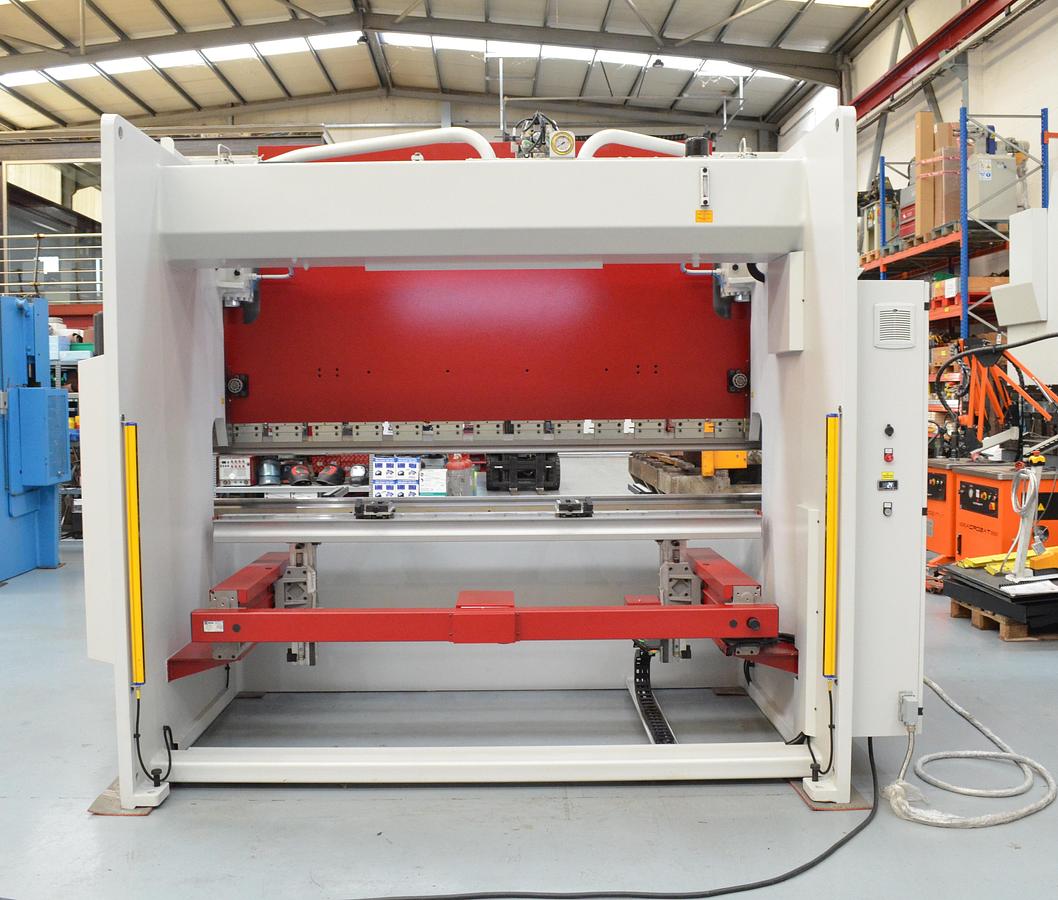

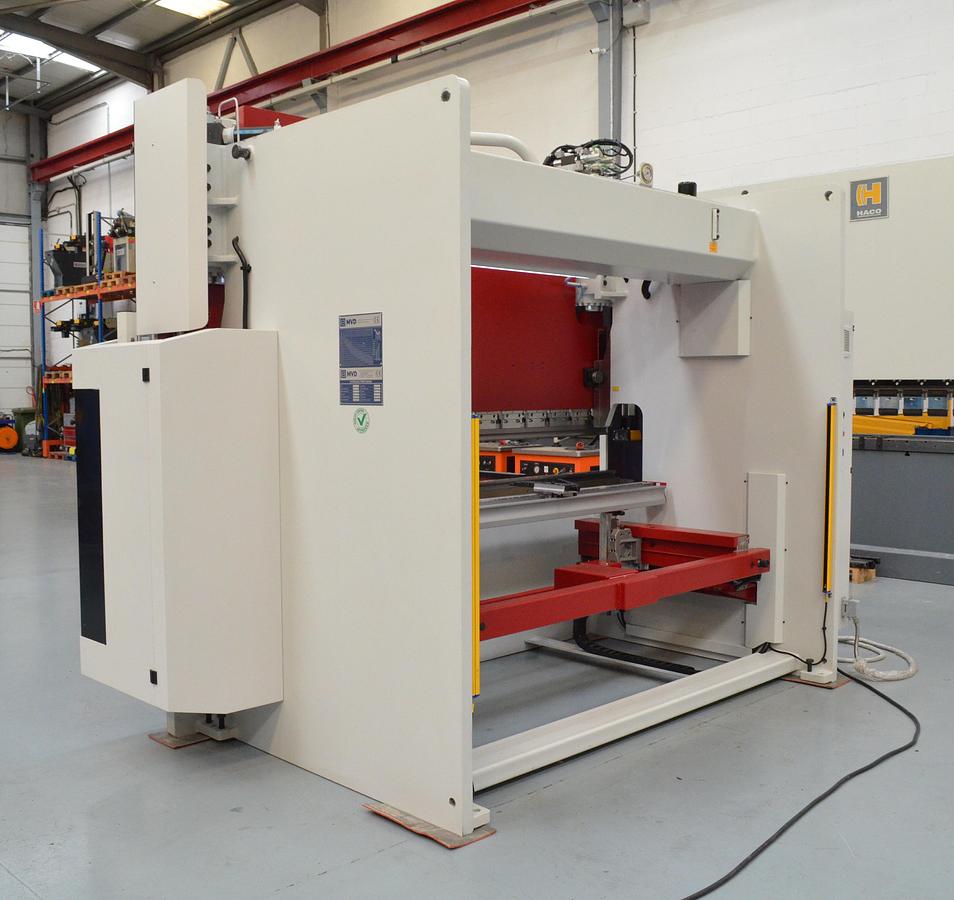

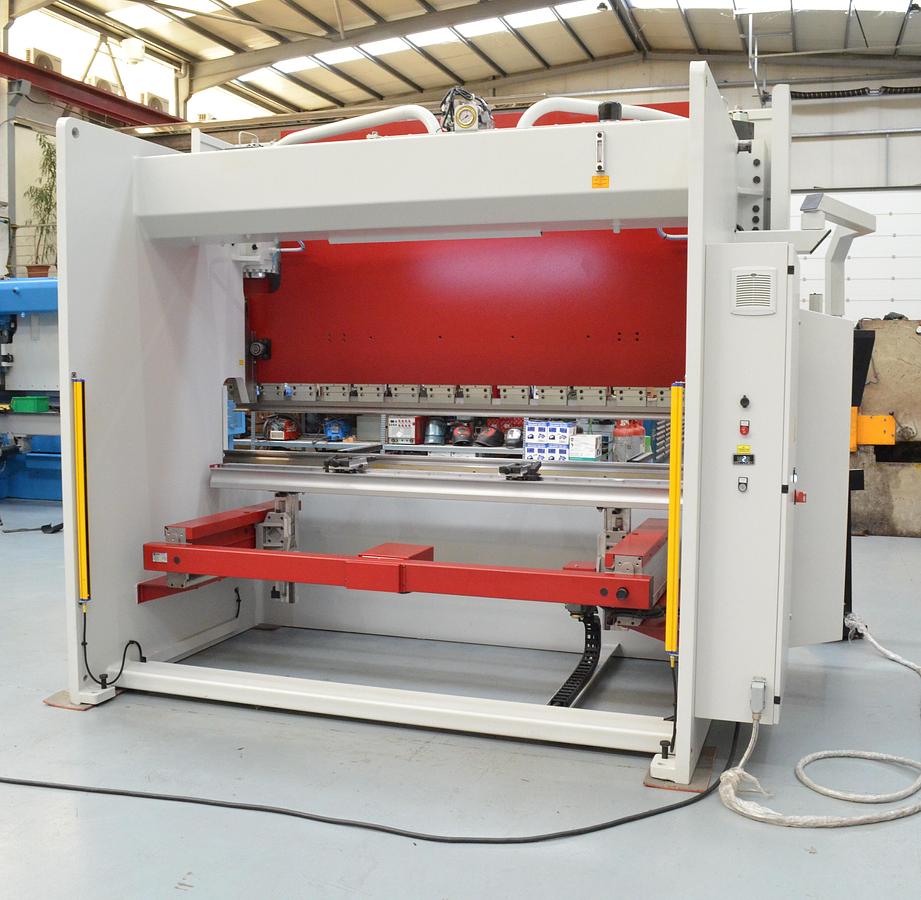

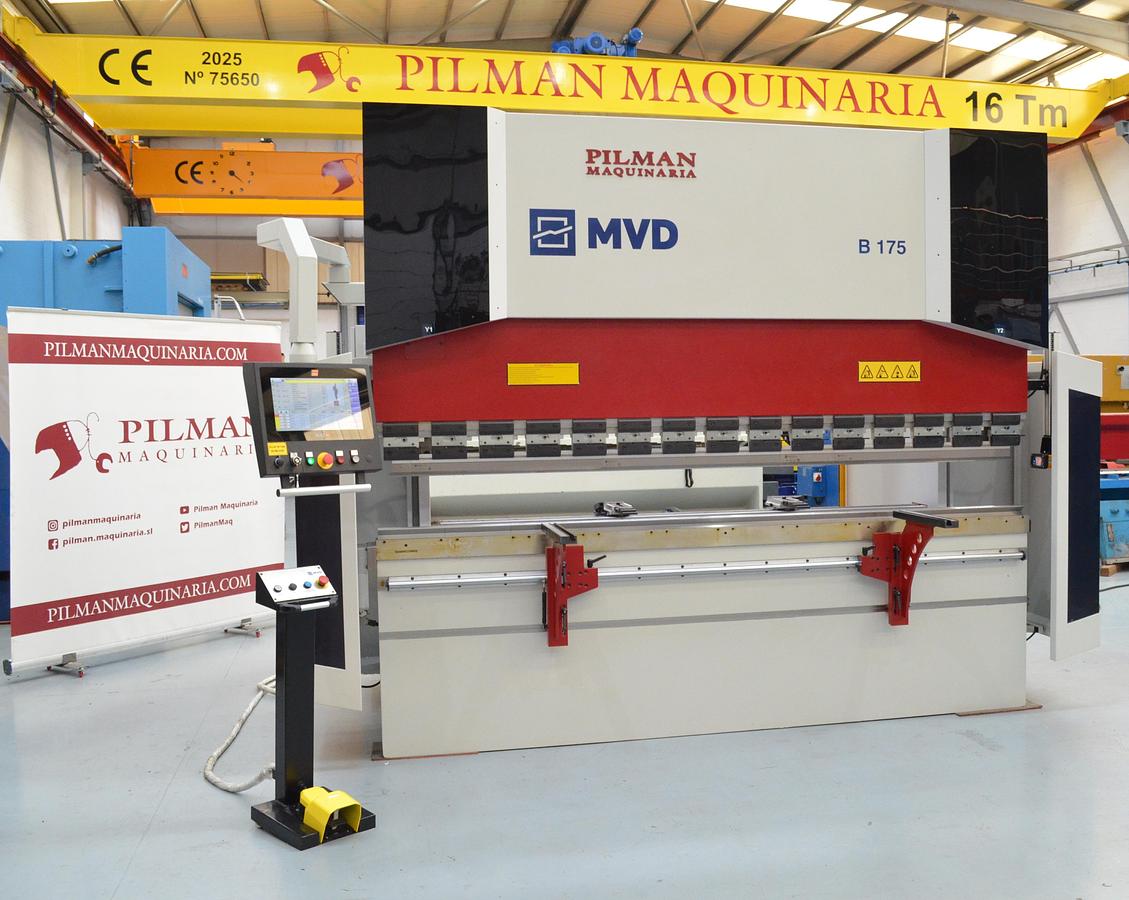

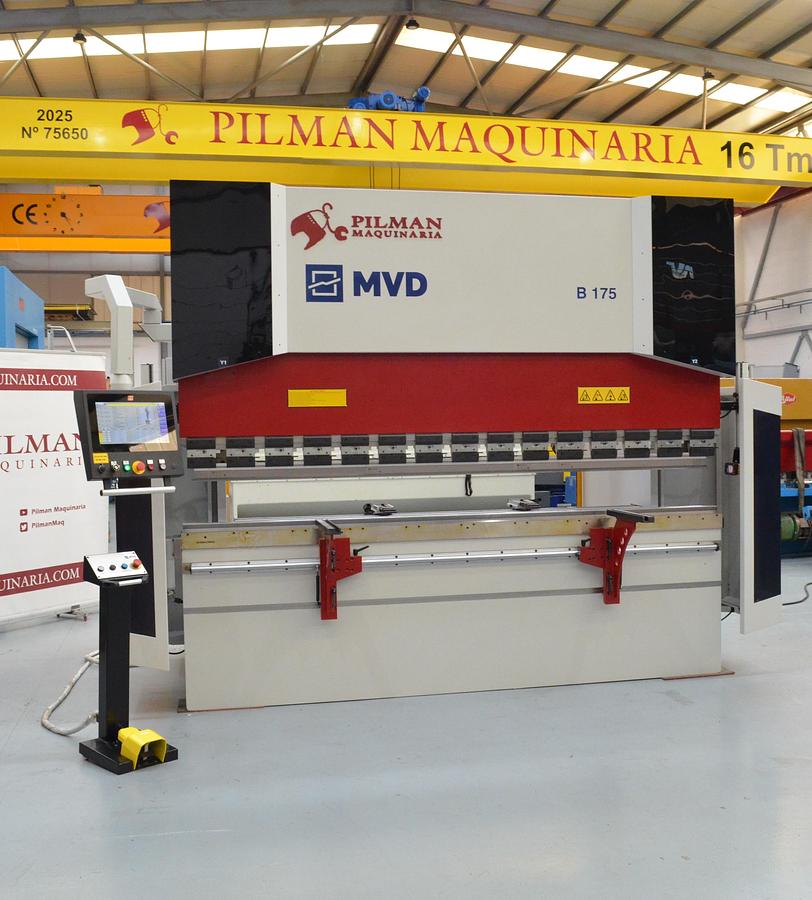

Hydraulic Press Brake MVD SERIES B - 3,100x175Tn

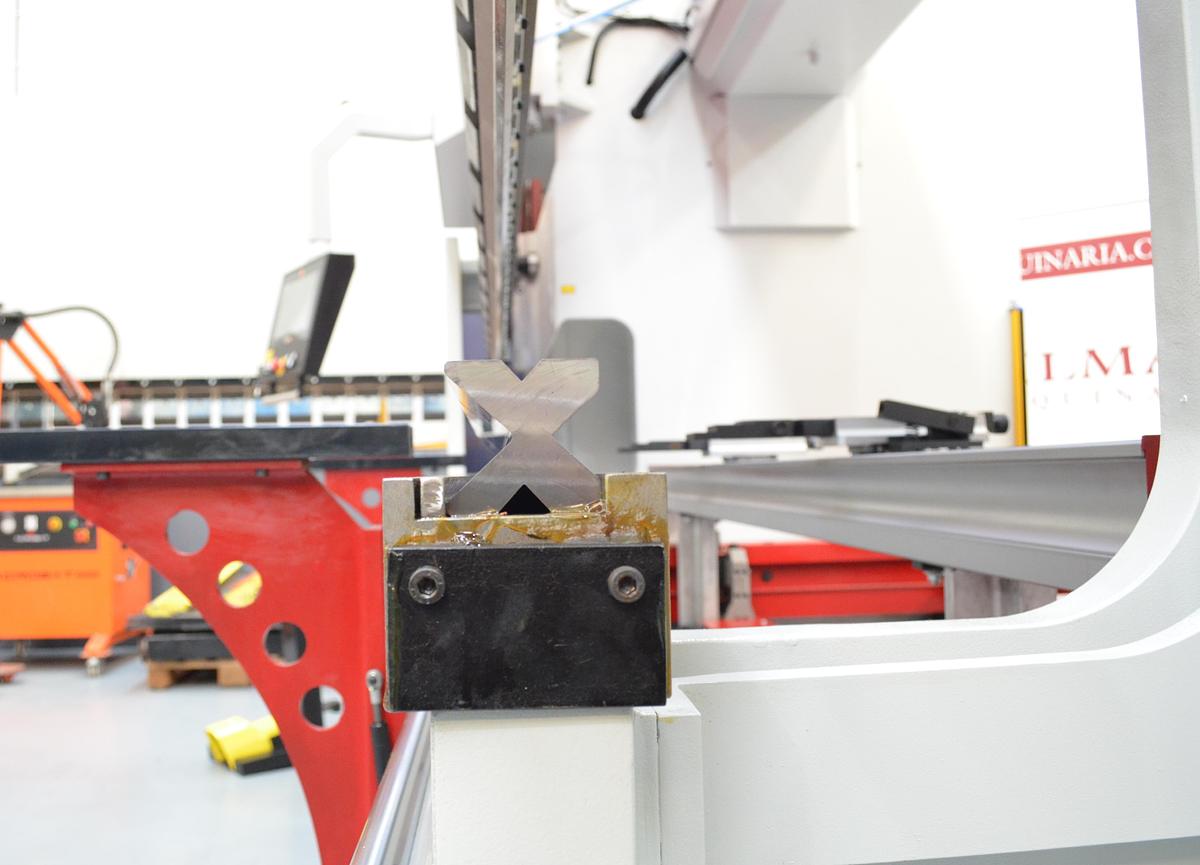

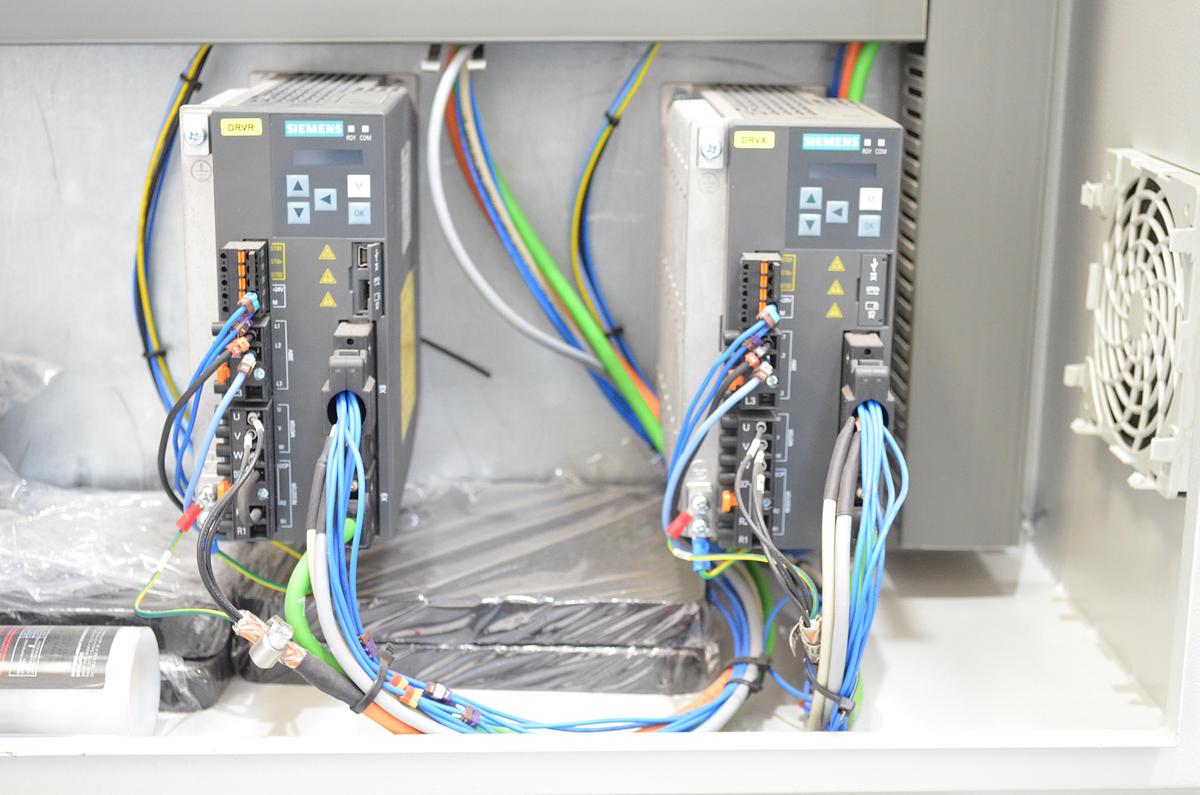

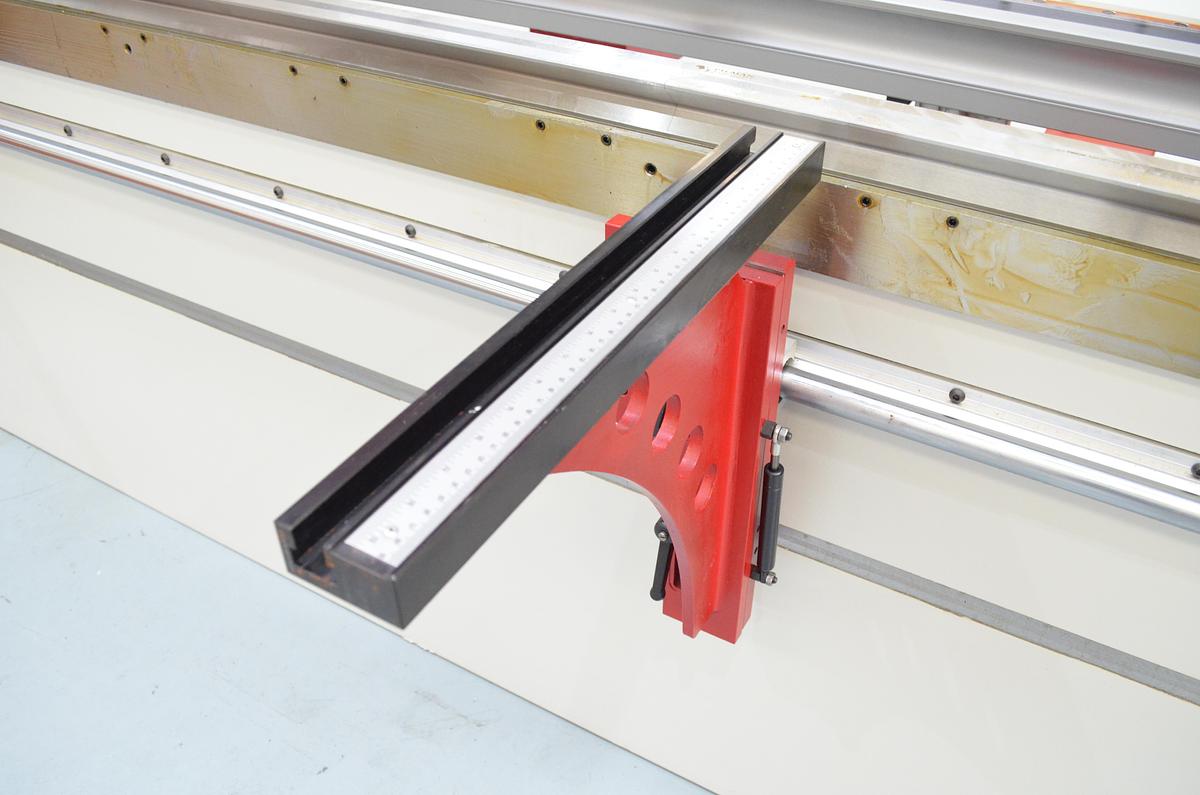

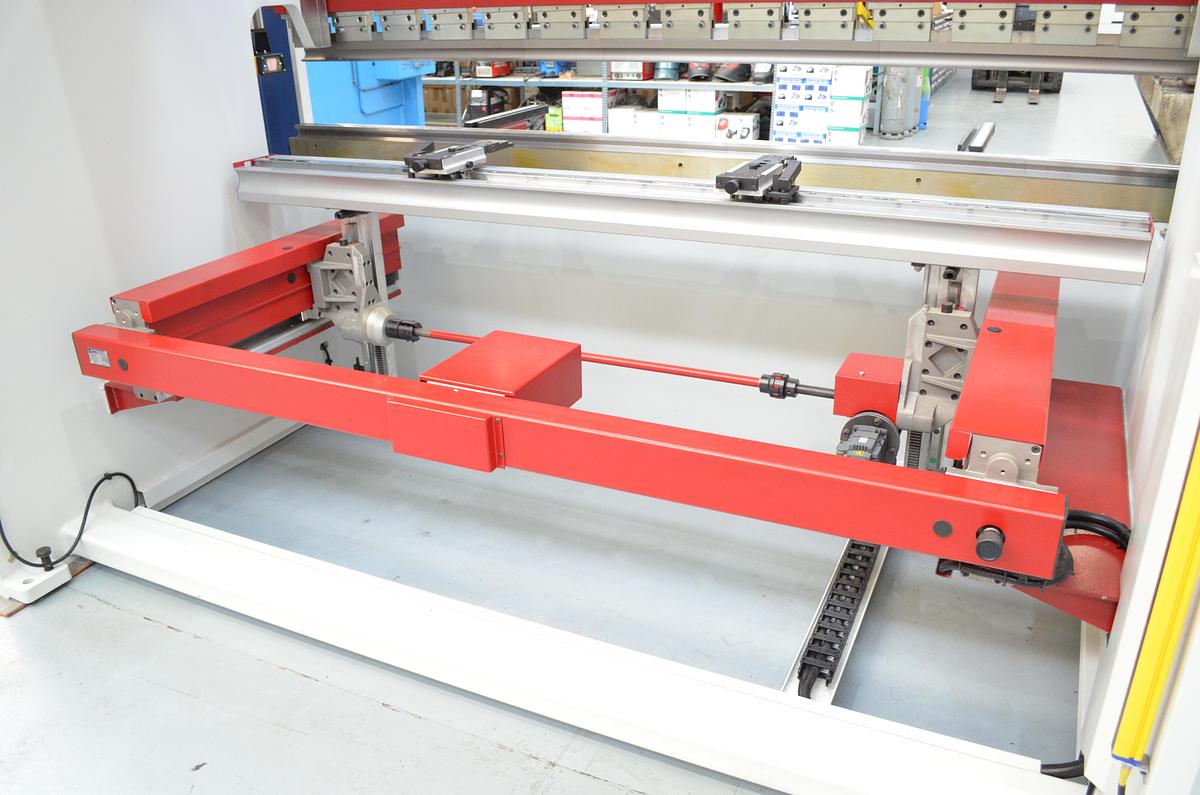

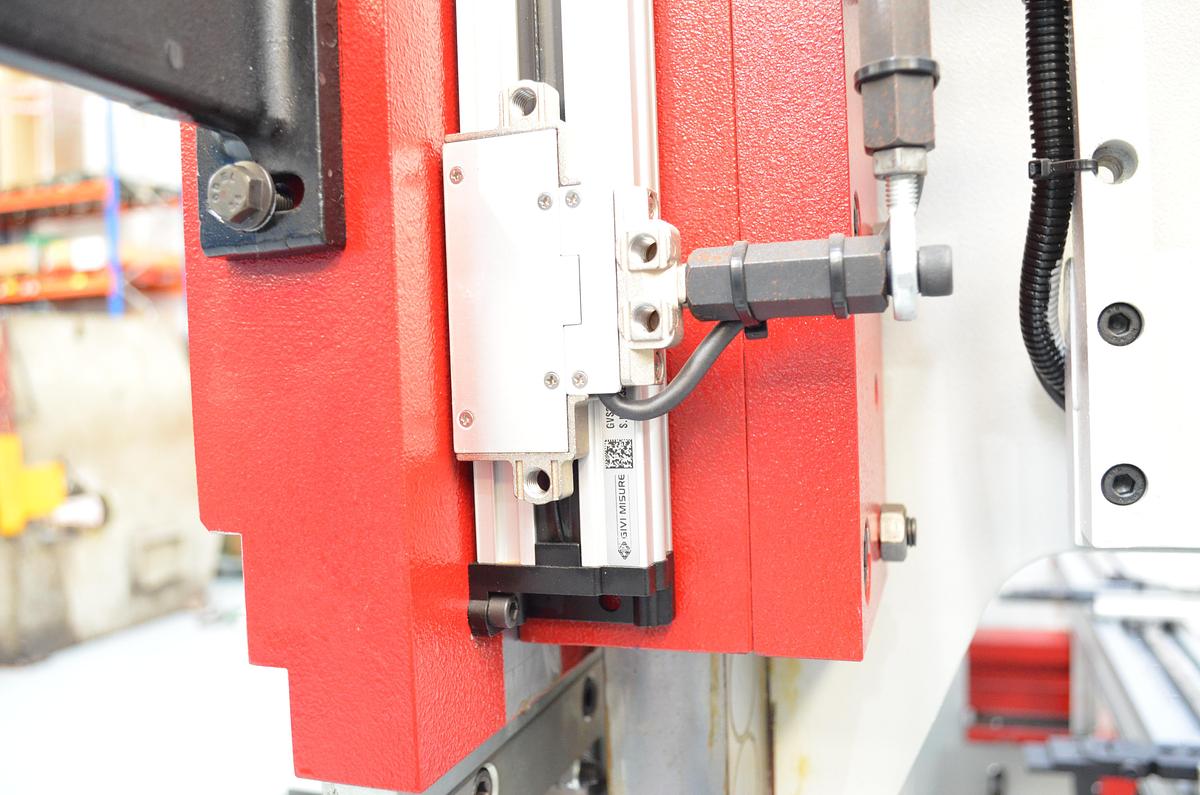

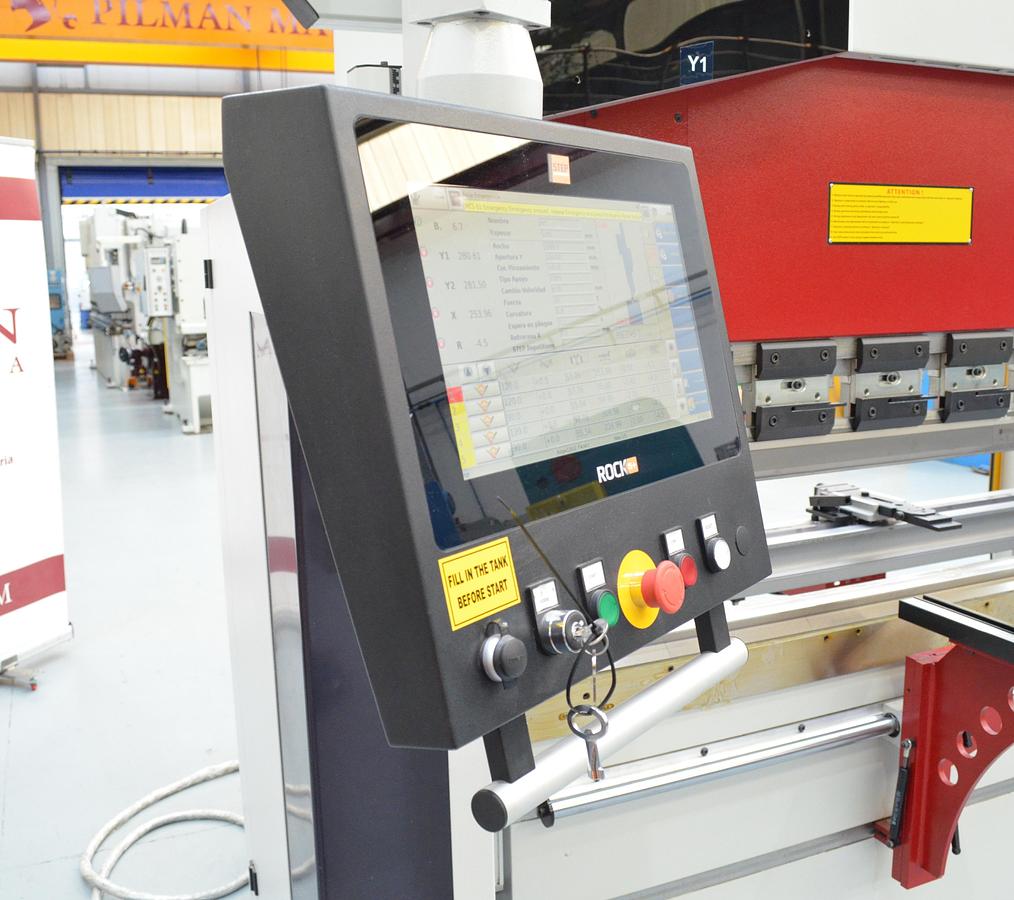

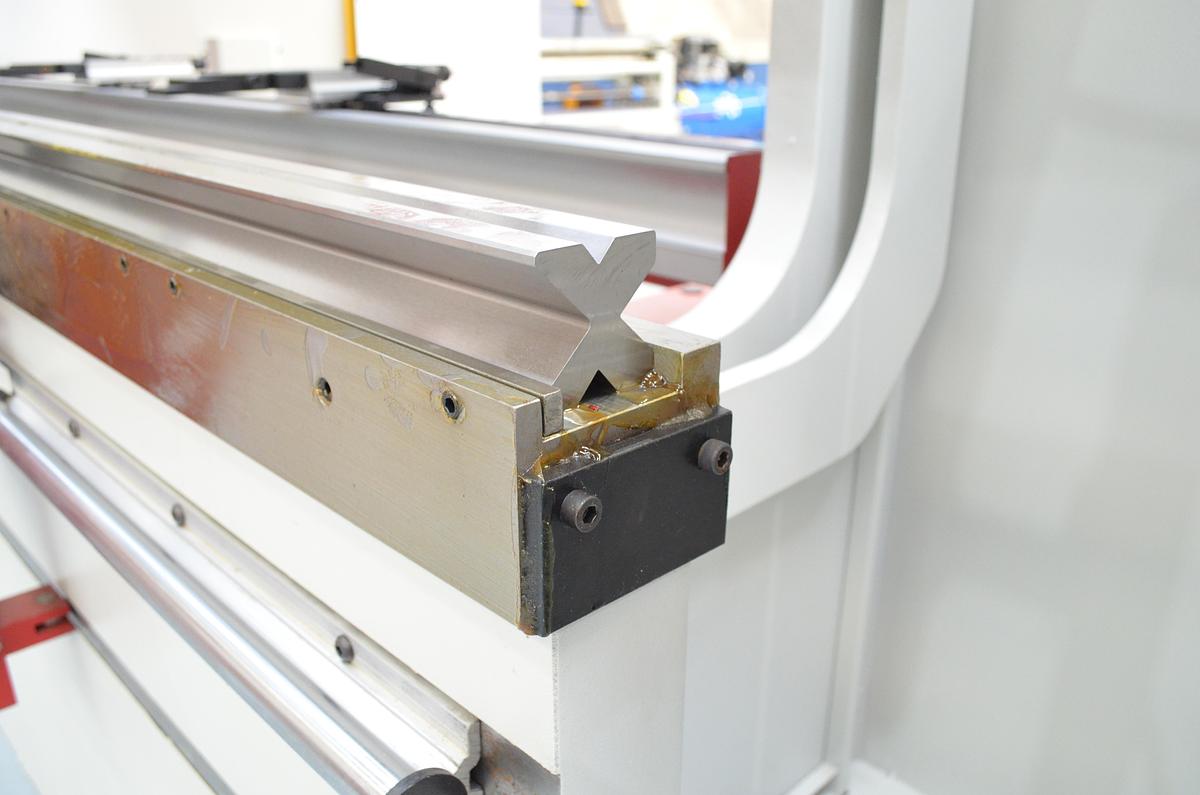

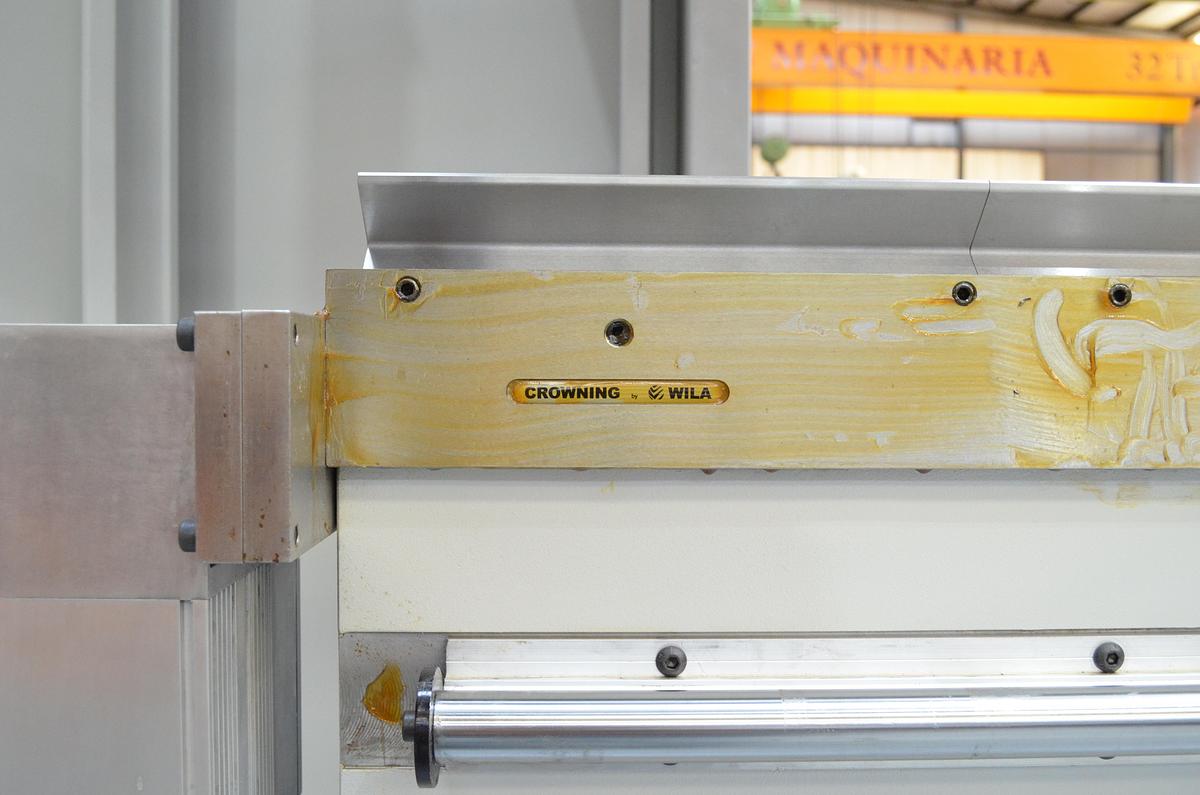

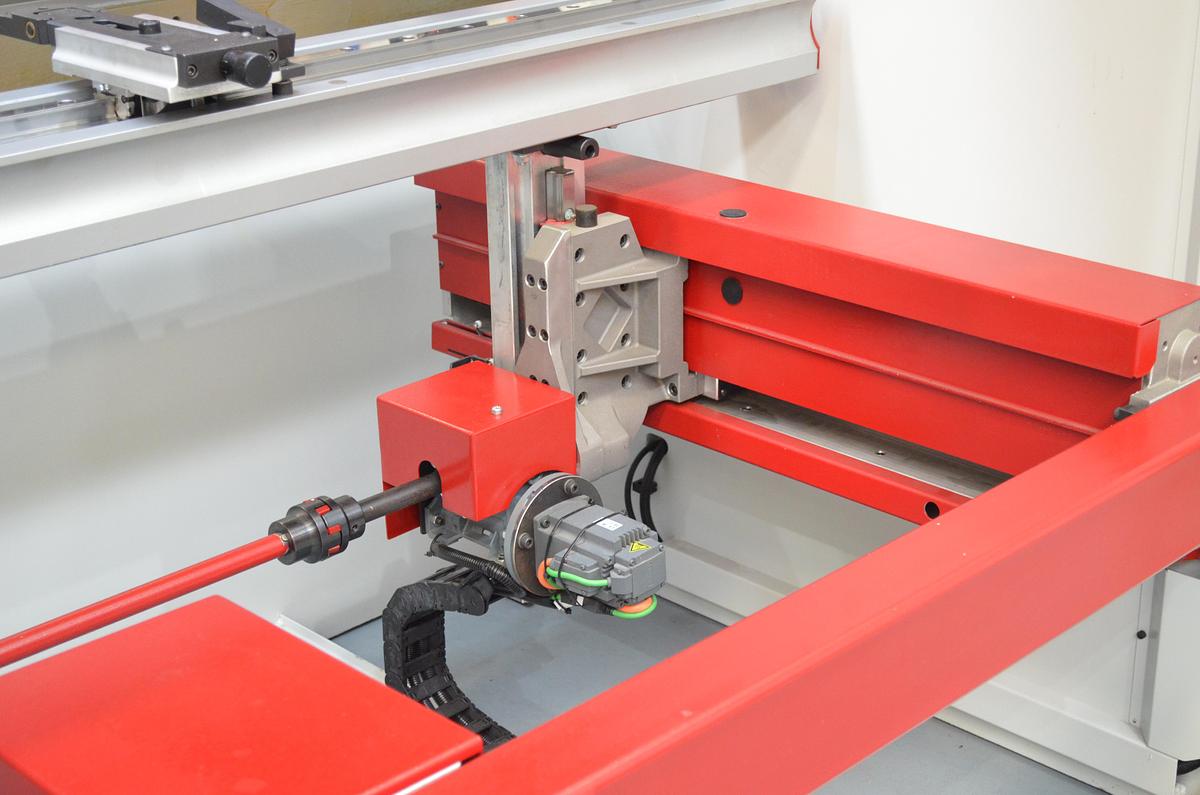

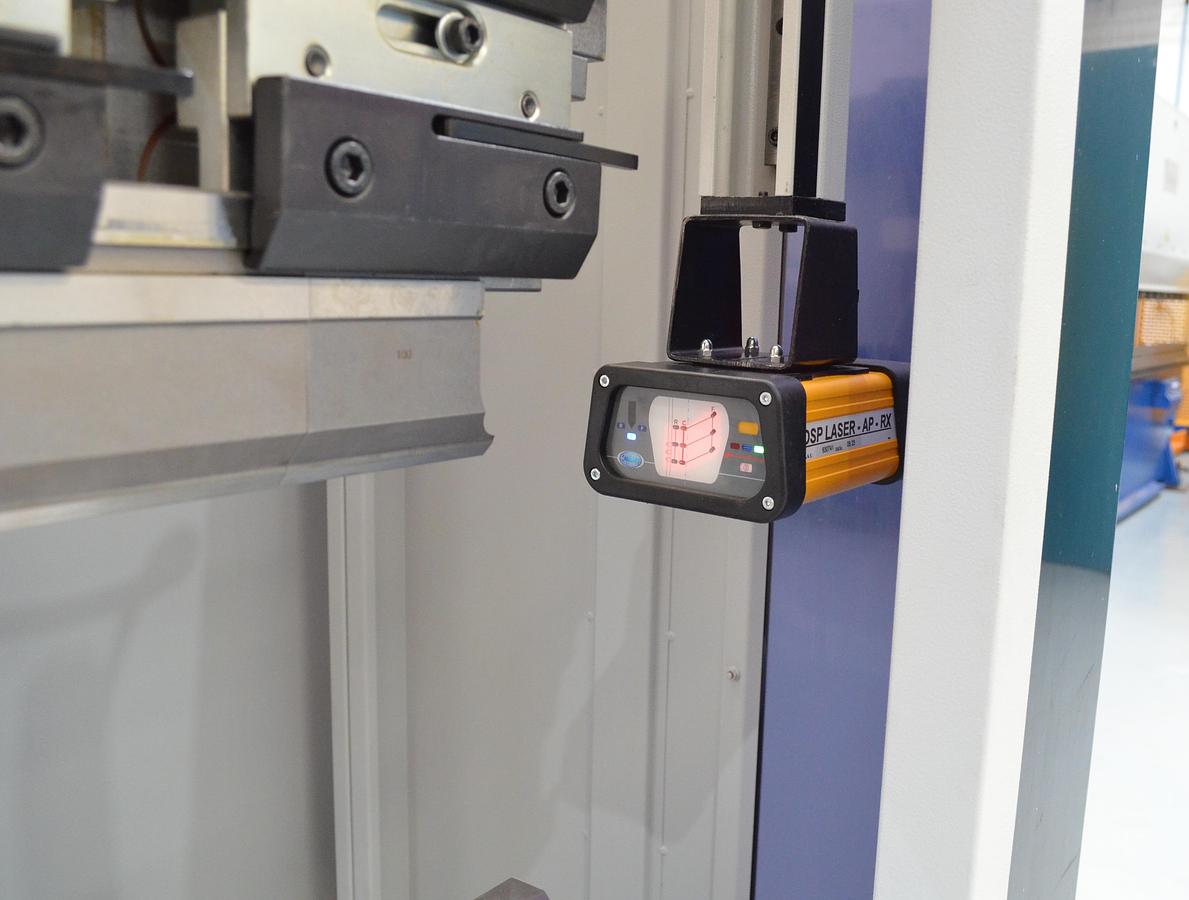

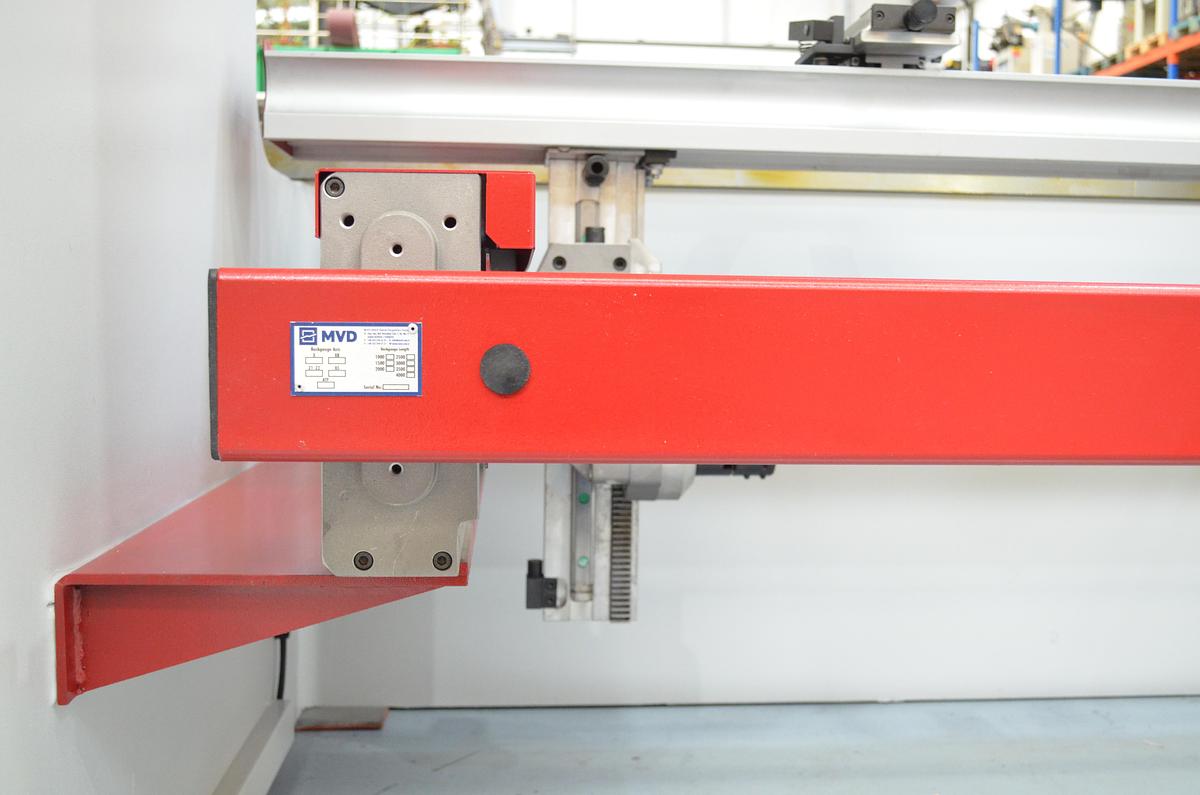

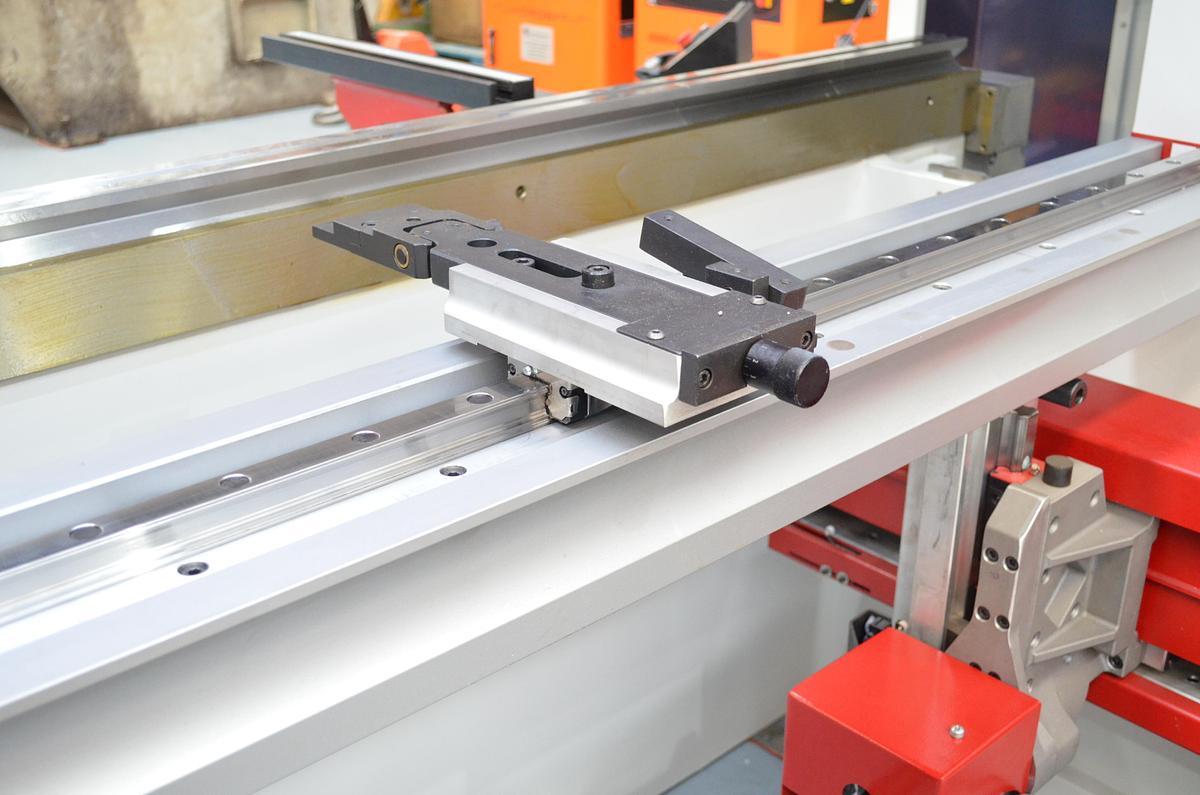

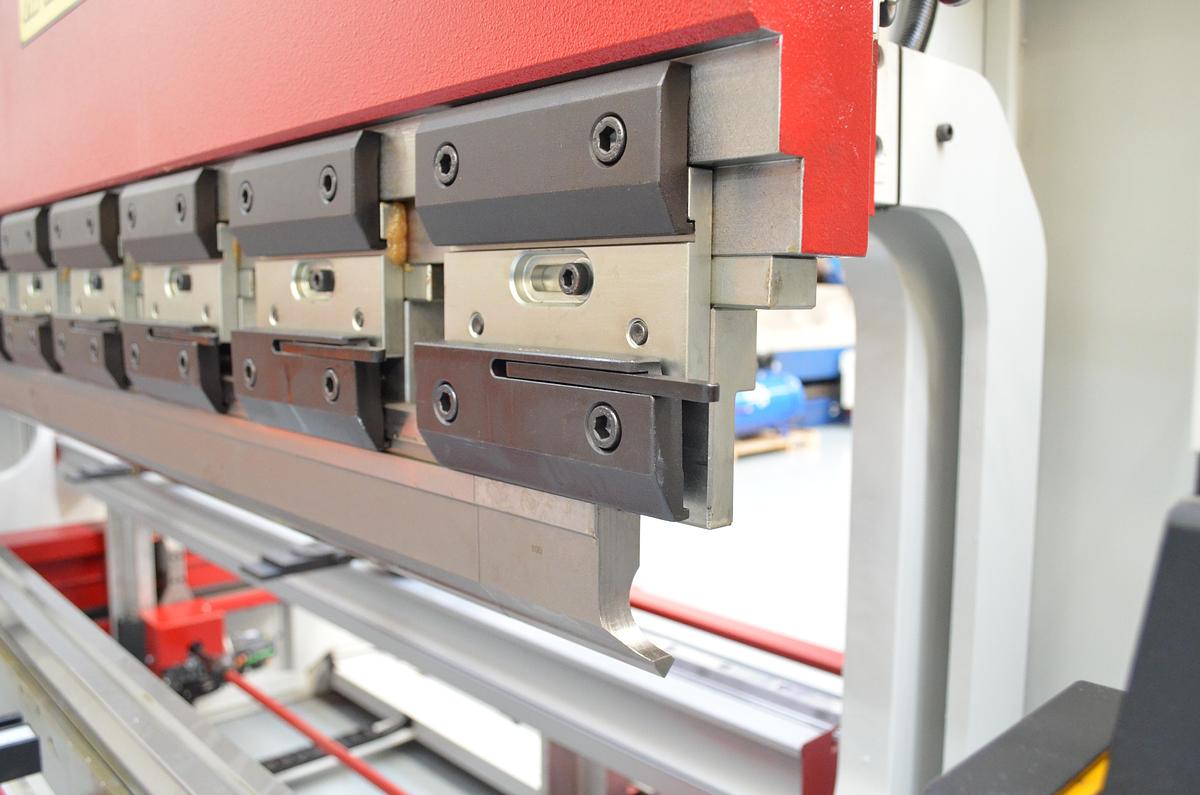

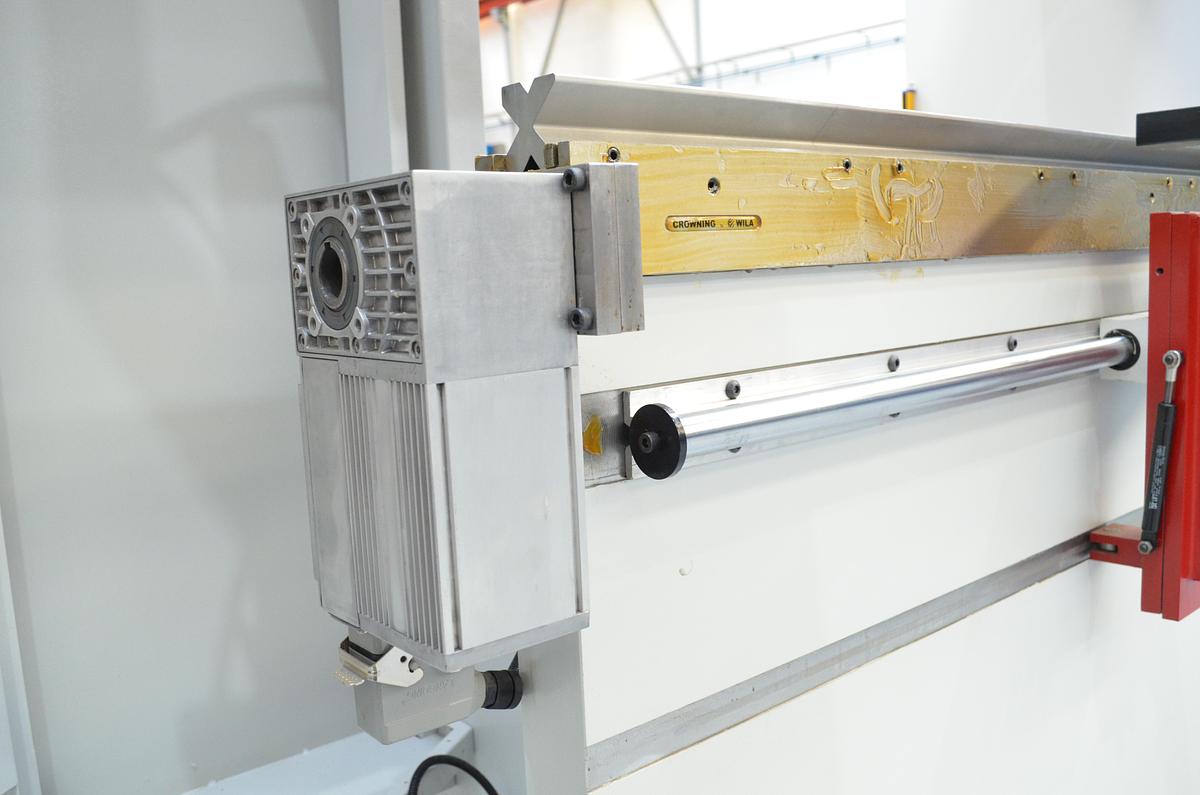

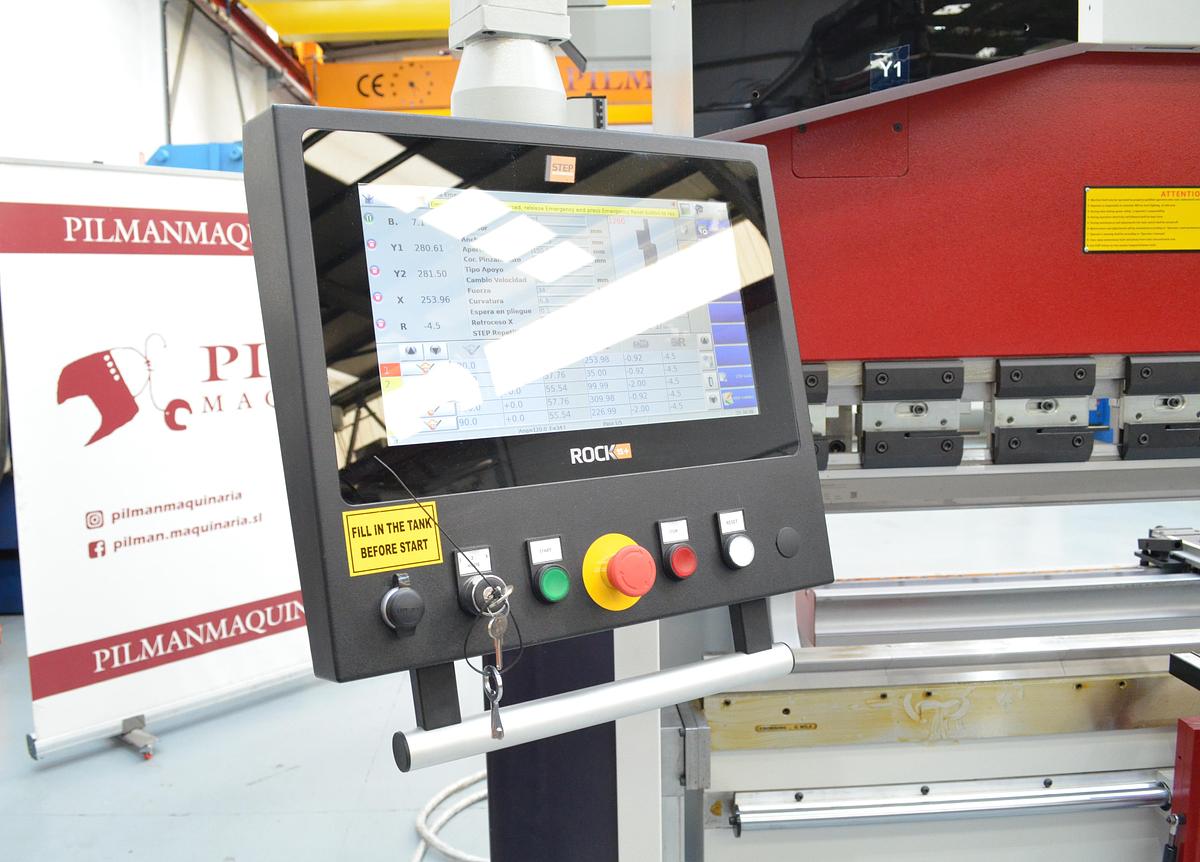

MVD SERIES B - 3.100X175TN B SERIES - 4 Axles Large press brake for excellent bends and flawless work The body and upper beam of the steel constructions have been designed according to strength criteria minimum and optimal. Model: B175/3100 Carrying force: 175 tons Folding length: 3100 mm Distance between columns: 2600 mm Ram stroke: 260 mm Light: 465 mm Neckline: 410 mm Table height: 955 mm Length x Width x Height: 4700 x 2430 x 2975 Approach speed: 180 mm/s Return speed: 130 mm/s Bending speed: 10 mm/s Oil tank: 180L Engine power: 15 Kw Weight: 8.850 Kg Standard Features: * Y1, Y2, X CNC 3 axes * 260mm stroke, 410mm neck depth. * ESA S630 CNC control unit * ± 0.03 accuracy SERVO motorized backgauge X = 750 mm * Promecam quick-clamping punching tool holder * Sliding front blade support arms * Special narrow-bottom table MVD (European type) * GIVI optical linear scales * Standard punching tools ( H: 67, 850 R:08 ) * Standard grinding wheel tools (60x60mm, 4 Vee V=16-22-35-50mm, 85°, H:60) * LED lighting in RAM Optional features: * Options rear caliper X axis to 2-4-6-8 * Wide bottom table for Multi Vee modeling tools * Anti-deflection crowning with original Wila wedges * AKAS or DSP front laser safety systems * Additional backgauge fingers * Front laser safety
