Optical I/O Link Adapter FANUC A13B-0154-B001

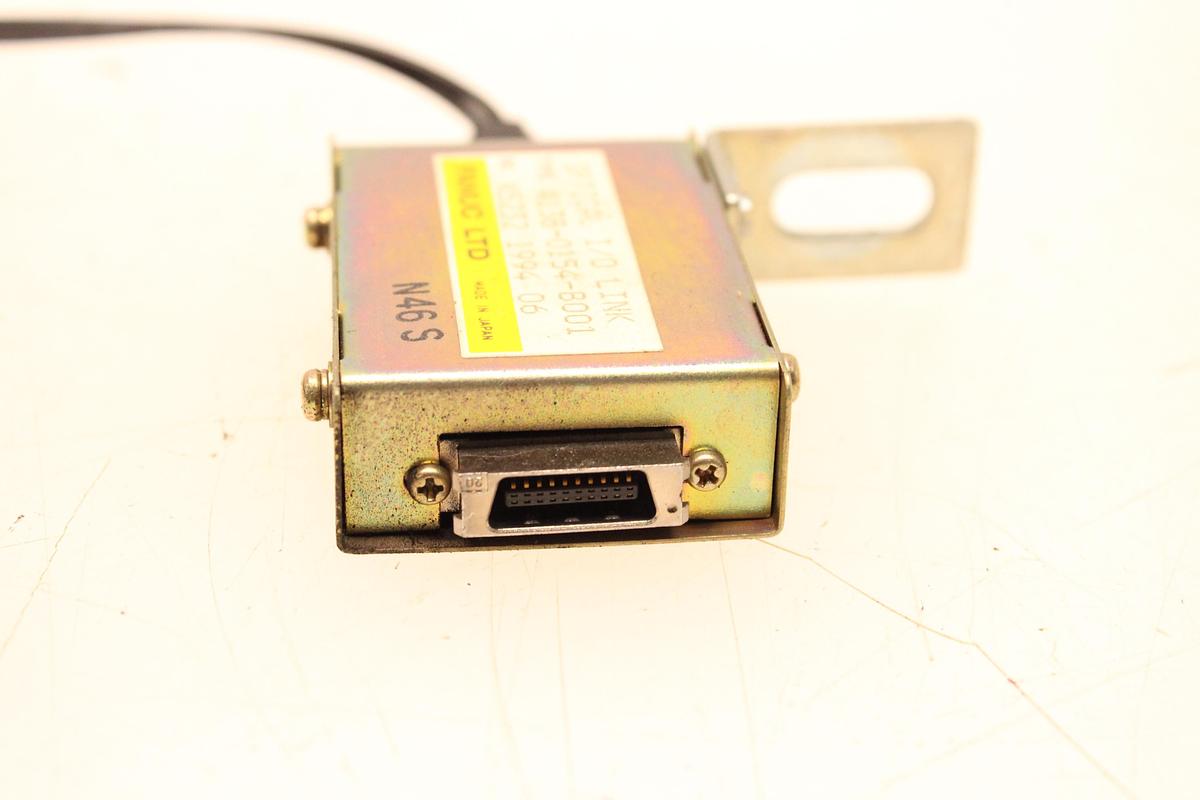

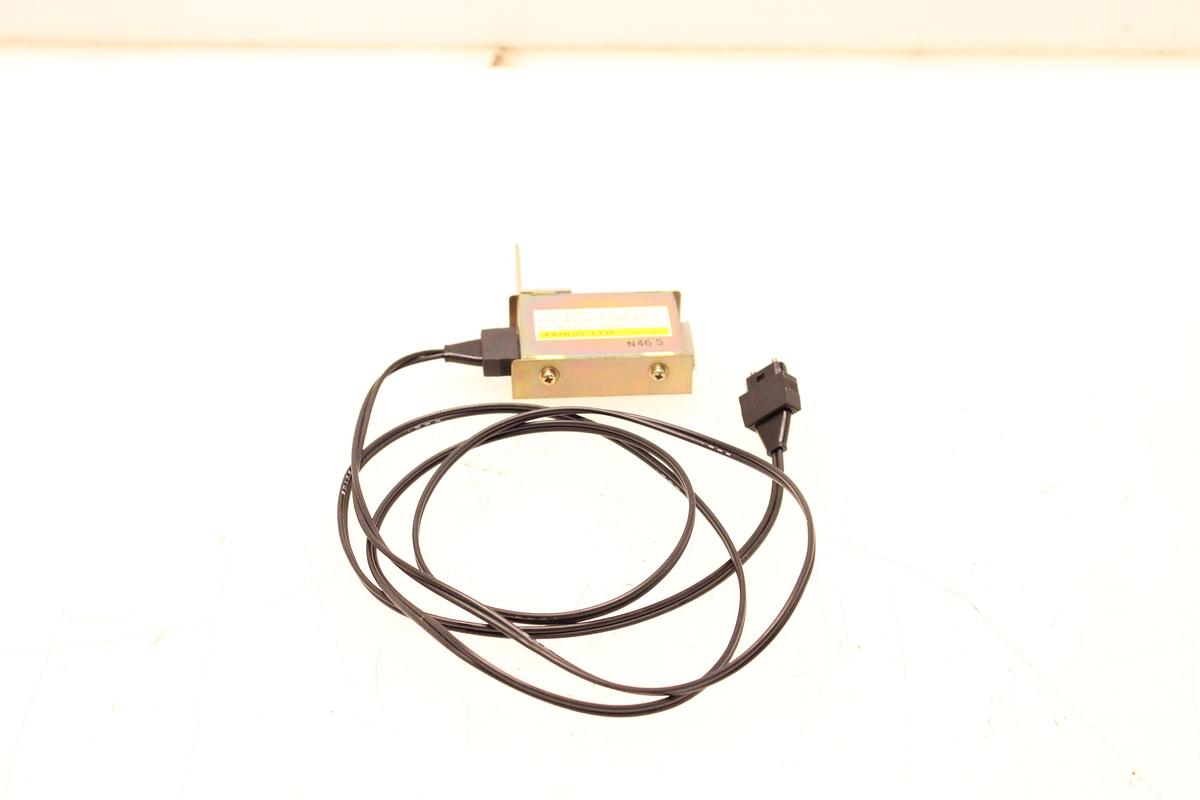

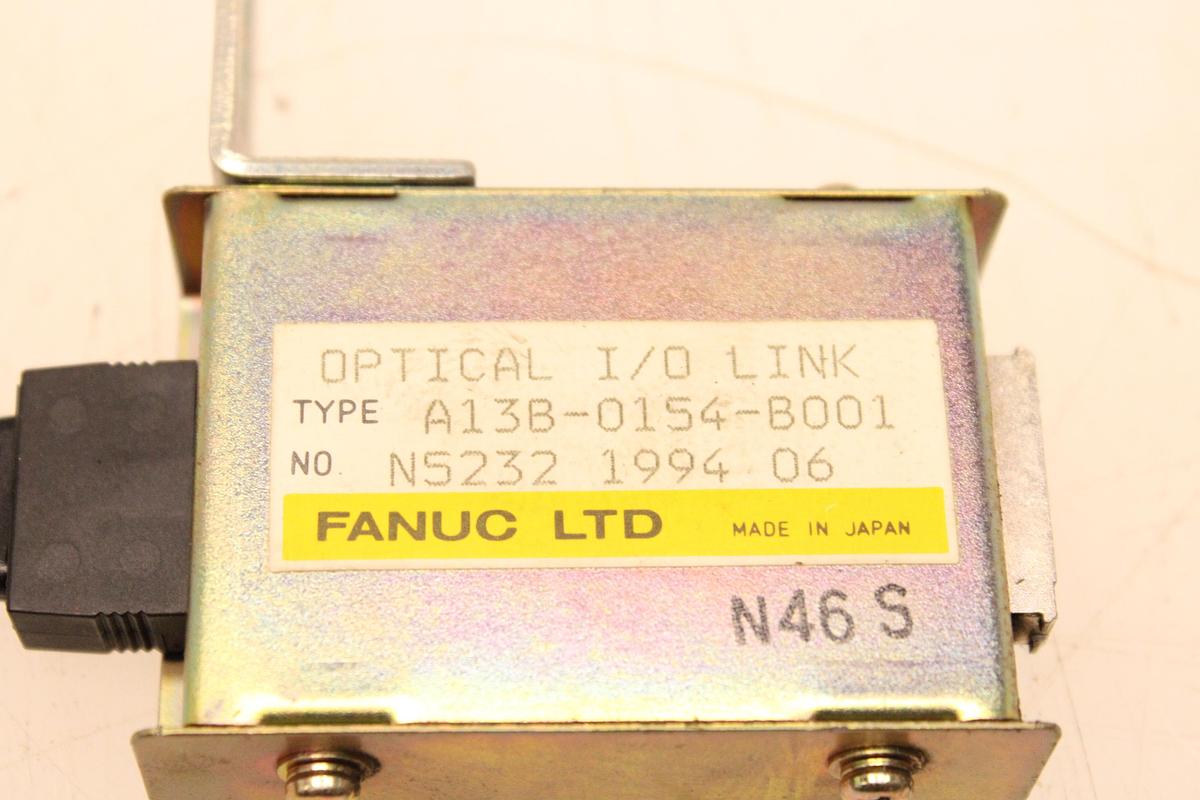

Optical I/O Link Adapter FANUC A13B-0154-B001 The A13B‑0154‑B001 is an optical I/O Link adapter (standard type) used in classic Fanuc CNC systems (series 0, F, 15i, 30i, etc.), located between the CNC optical output or I/O module and the optical fiber cable Features: Type: Optical I/O Link adapter (not high-speed) Supply voltage: 4.75–5.25 V Current consumption: approx. 200 mA Maximum transmission distance: * Standard: up to 200 m per segment (max. 5 connected stages) * If more than 5 are used, the high-speed model A13B‑0154‑B004 is recommended Connectors: * JD1 for K3X electrical I/O cable * COP‑1 for optical fiber Weight: ~0.18 lb (~80 g) ( From Kondia Machining Center B-1000 )
