MITSUBISHI MDS‑A‑CV‑185 Power Supply Module

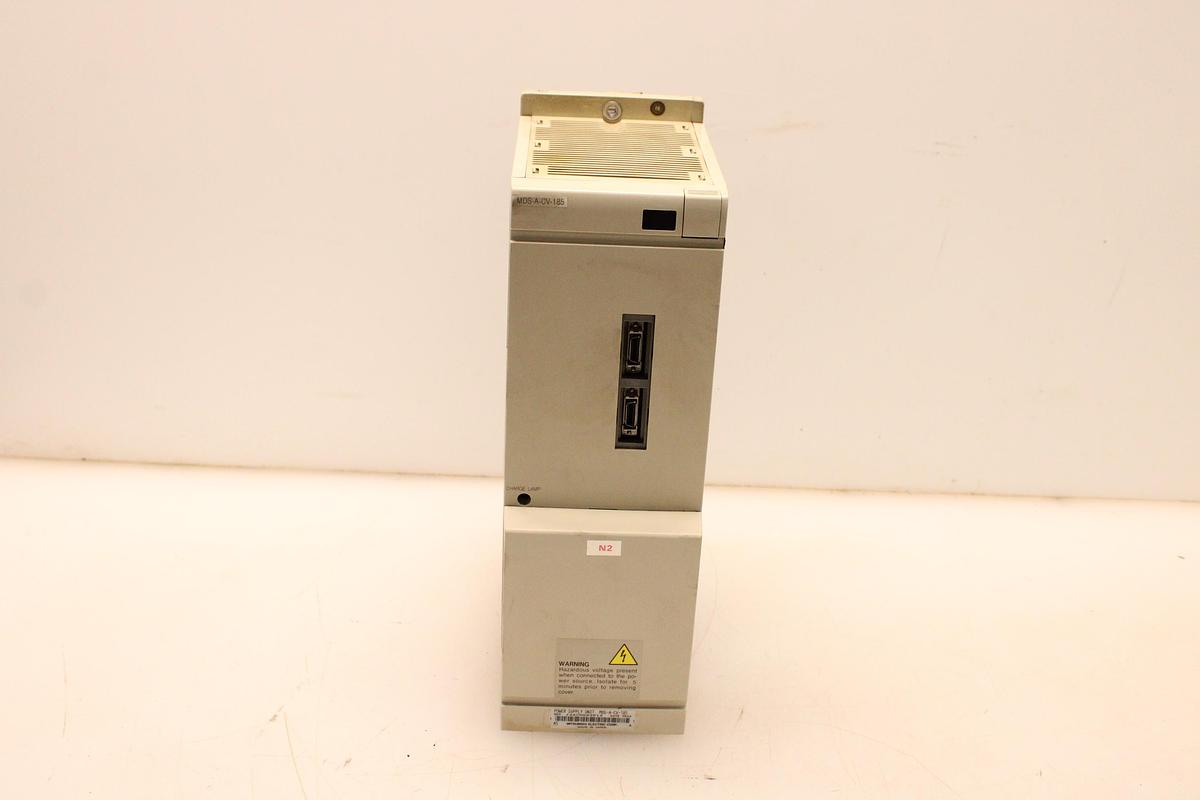

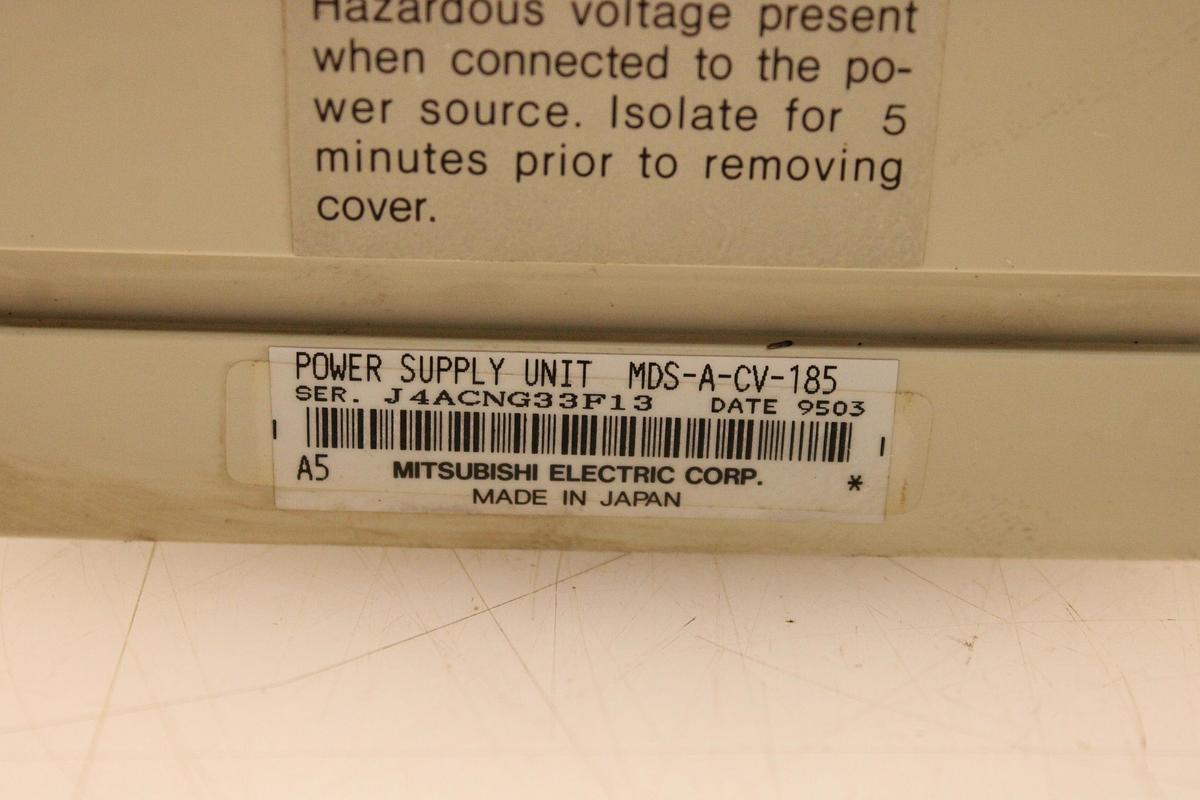

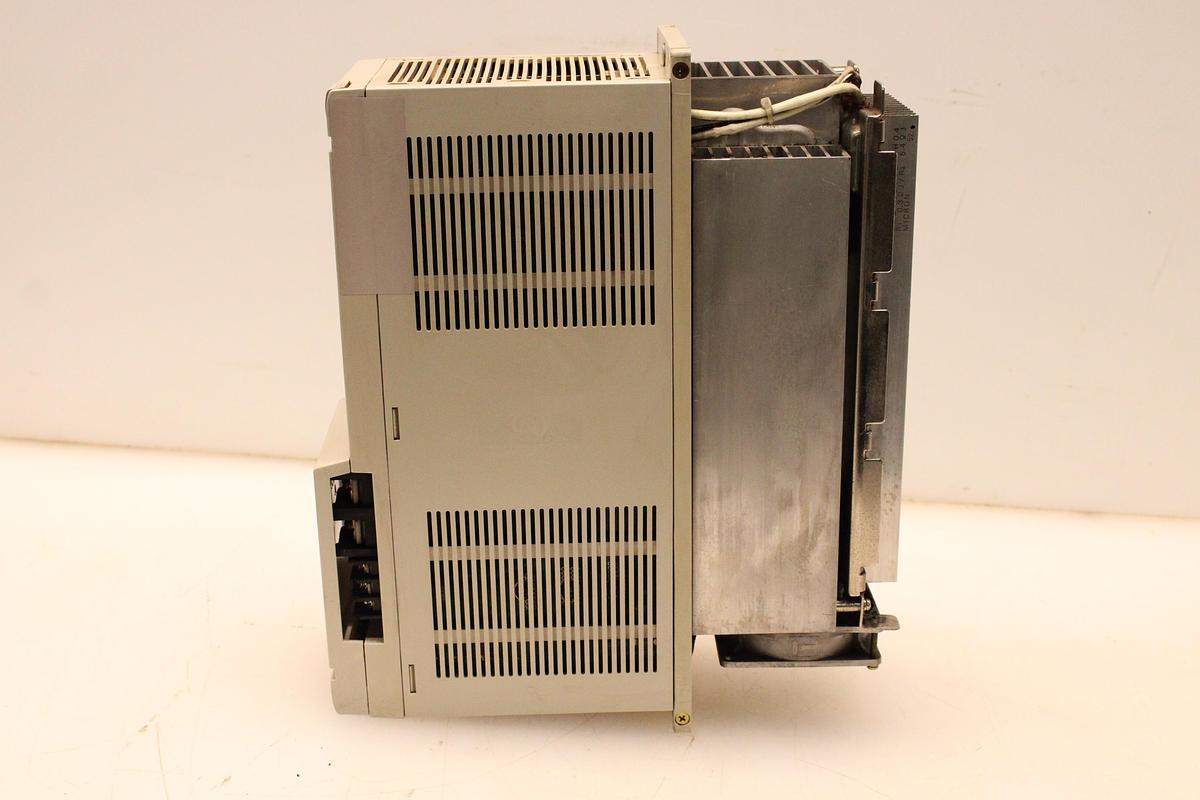

Power Supply Module MITSUBISHI MDS‑A‑CV‑185 Manufacturer: Mitsubishi Model: MDS-A-CV-185 Serial No.: J4ACNG33F13 It is a power regeneration unit (servo power converter) of the MDS‑A series, designed to supply both servo motors and spindle motors in MELDAS 500 CNC machines Features: Model: MDS‑A‑CV‑185 (equivalent to MDS‑C1‑CV‑185 in the later series). Power 30 min: 18.5 kW (continuous service thermal rating). Nominal continuous output: 15 kW DC Maximum transient capacity: approx. up to 60 kW. Cooling: built-in fan at the rear Compatibility: mounts alongside the servo/spindle drives according to the MELDAS manual, using tie bars for shared power ( From Hartford HV-50 Machining Center )
