TESCH F126 Safety Relay

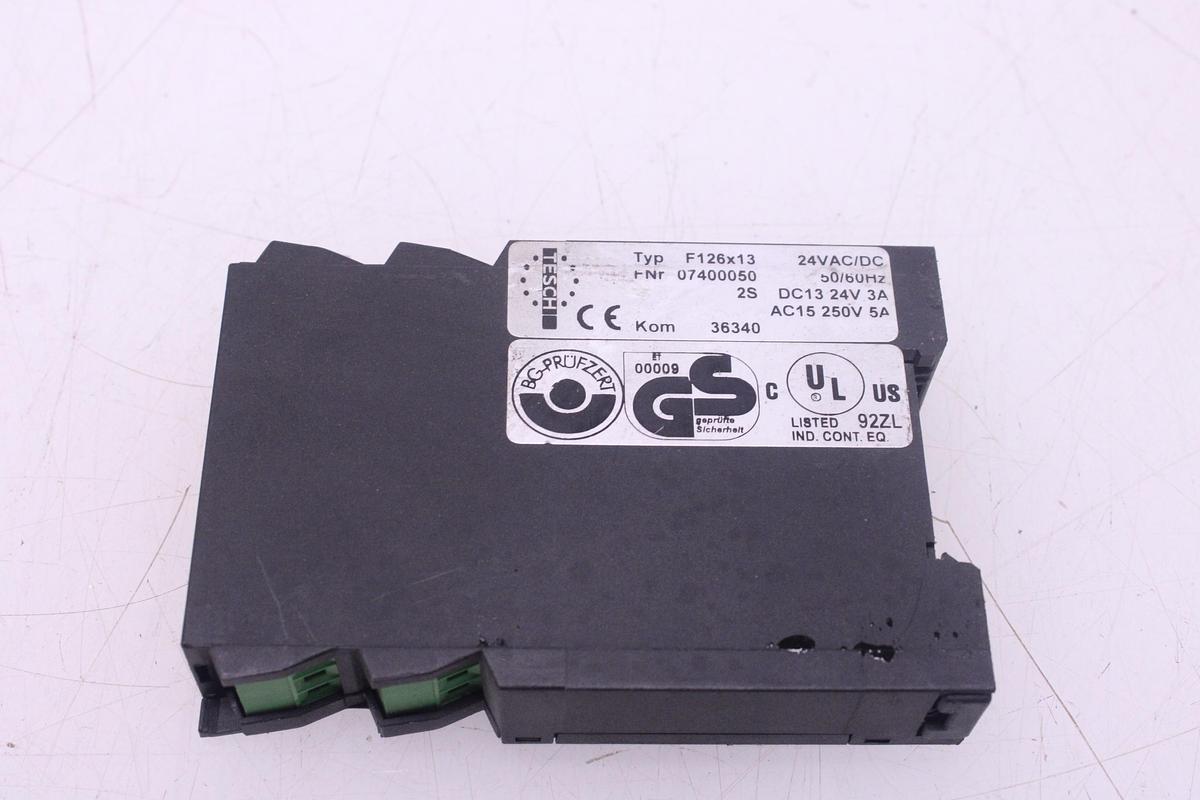

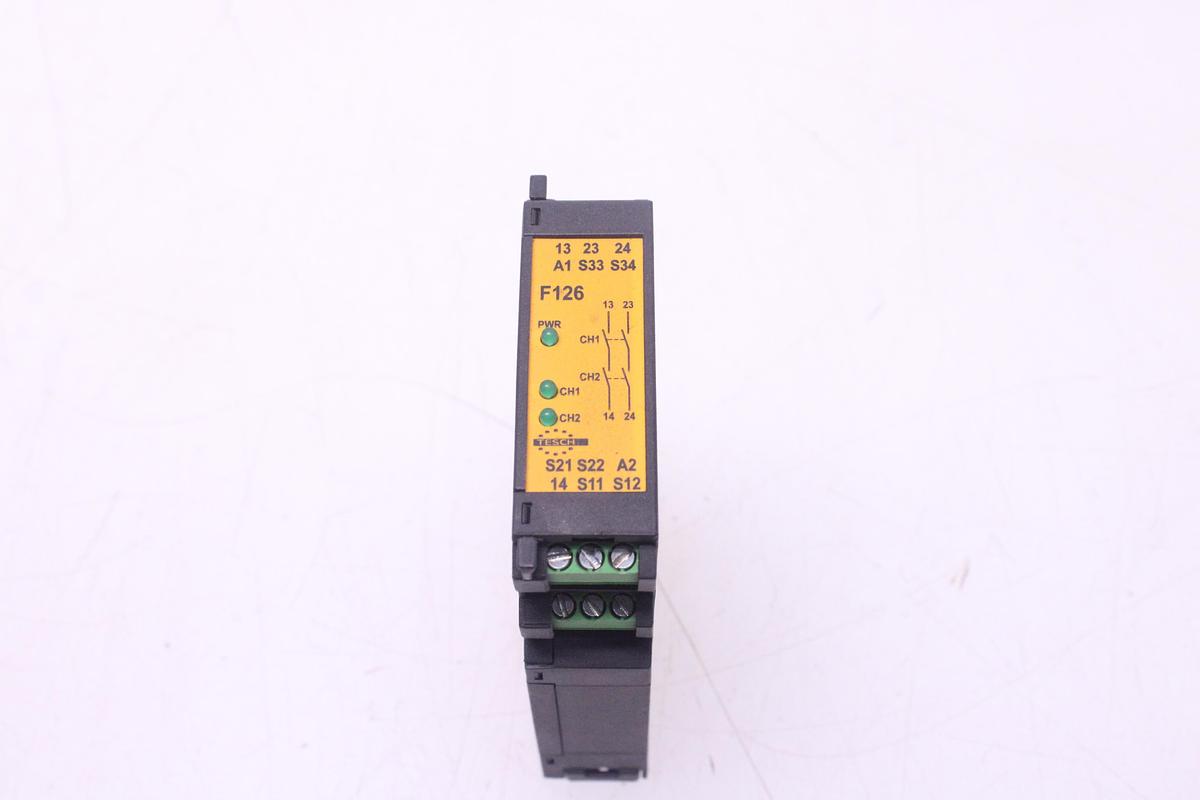

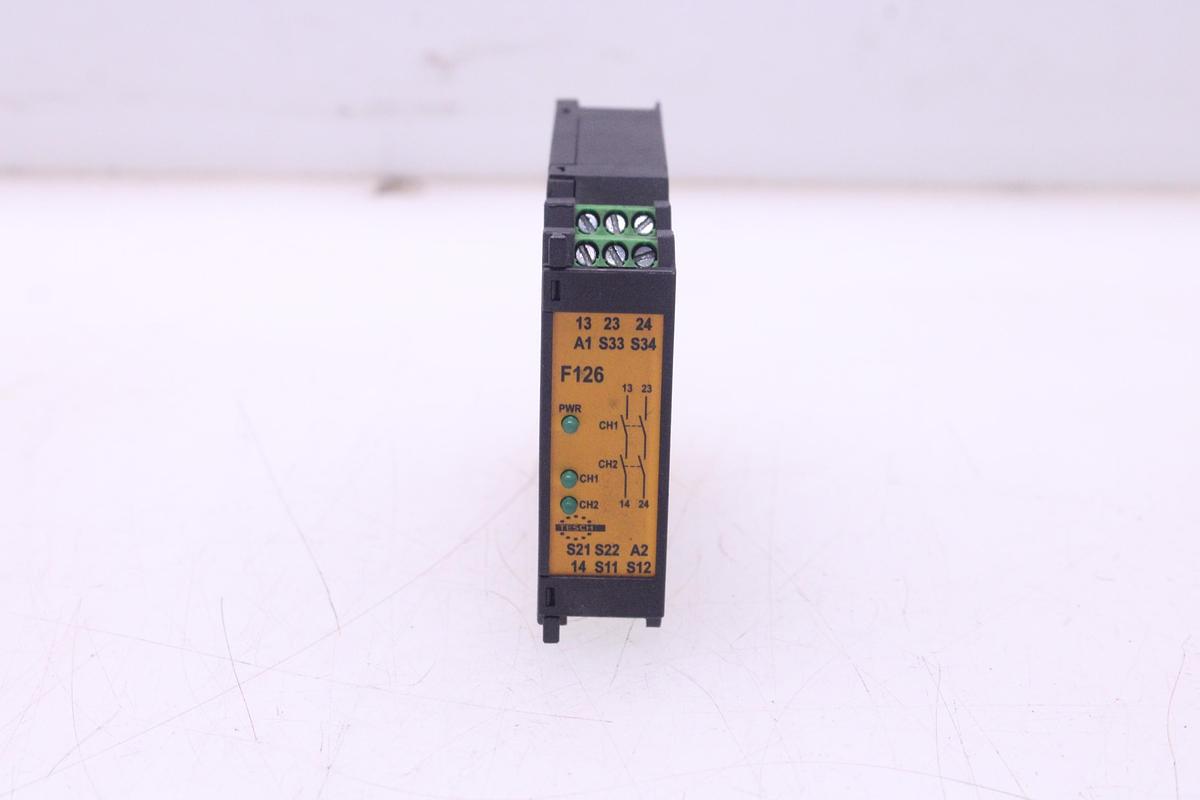

TESCH F126 Safety Relay The Tesch F126 is a safety relay designed for emergency stop and gate monitoring applications. Safety. It complies with the demanding safety category 4 of the EN 954-1 standard, the highest level to ensure the machine safety even in the event of failures Specifications: * Operating voltages: 230 VAC / 115 VAC or 24 VAC/DC (depending on the model). * Power consumption: Approx. 4 W. * Protection level: IP20 terminals with IP40 housing. * Switching capacity: up to 6A in one path; AC-15: 250V, 5A; DC-13: 24V, 3A. * Response time: * Reset button: < 60 ms, Auto start: < 300 ms, * Emergency stop: < 15 ms, power loss: < 140 ms. * Recovery: > 0.1 s after emergency stop/light barrier; > 1 s after power loss. * Outputs: Two normally open (N/O) safety contacts. * Mechanical life: Around 10^7 switching cycles. * Weight: ~160–215 g depending on voltage version
