Straight M12 Connector Couplers + 1/2"-27 Threads - 27 Units CKD GWS12-15

Straight M12 Connector Couplers + 1/2"-27 Threads - 27 Units CKD GWS12-15

€25

Available quantity:1

Description

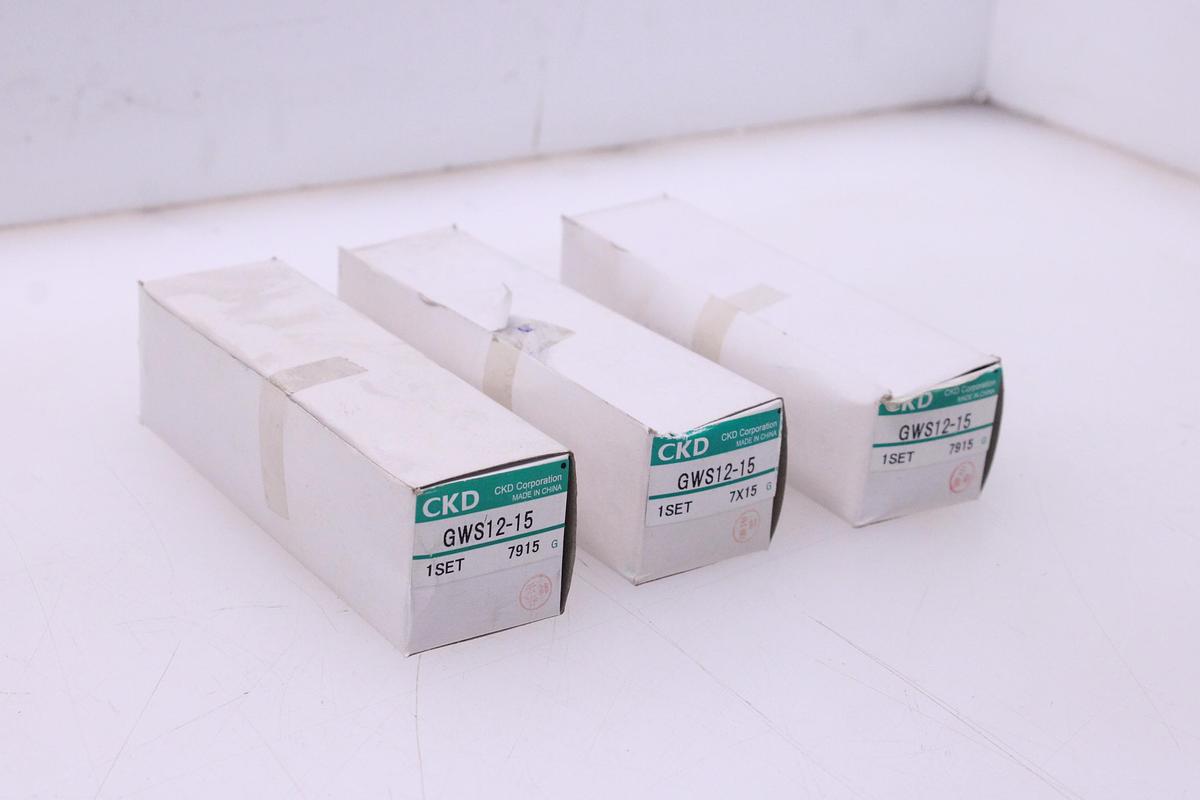

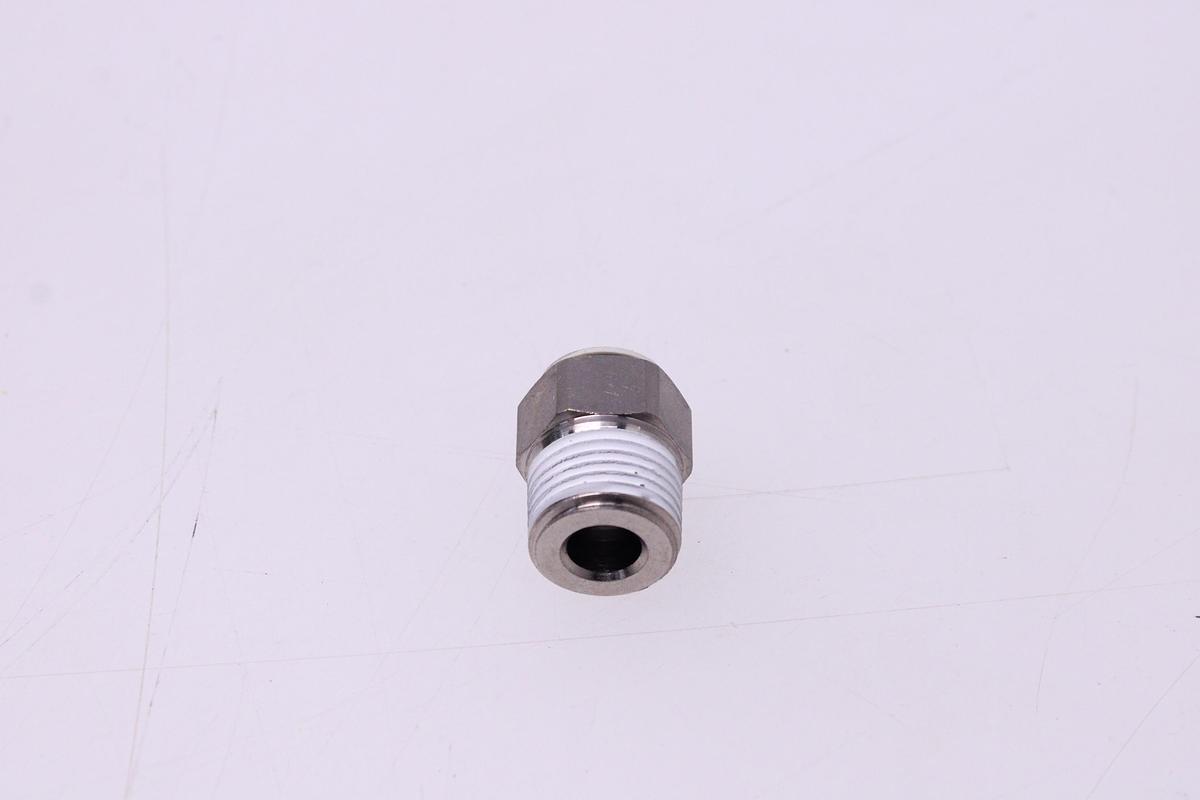

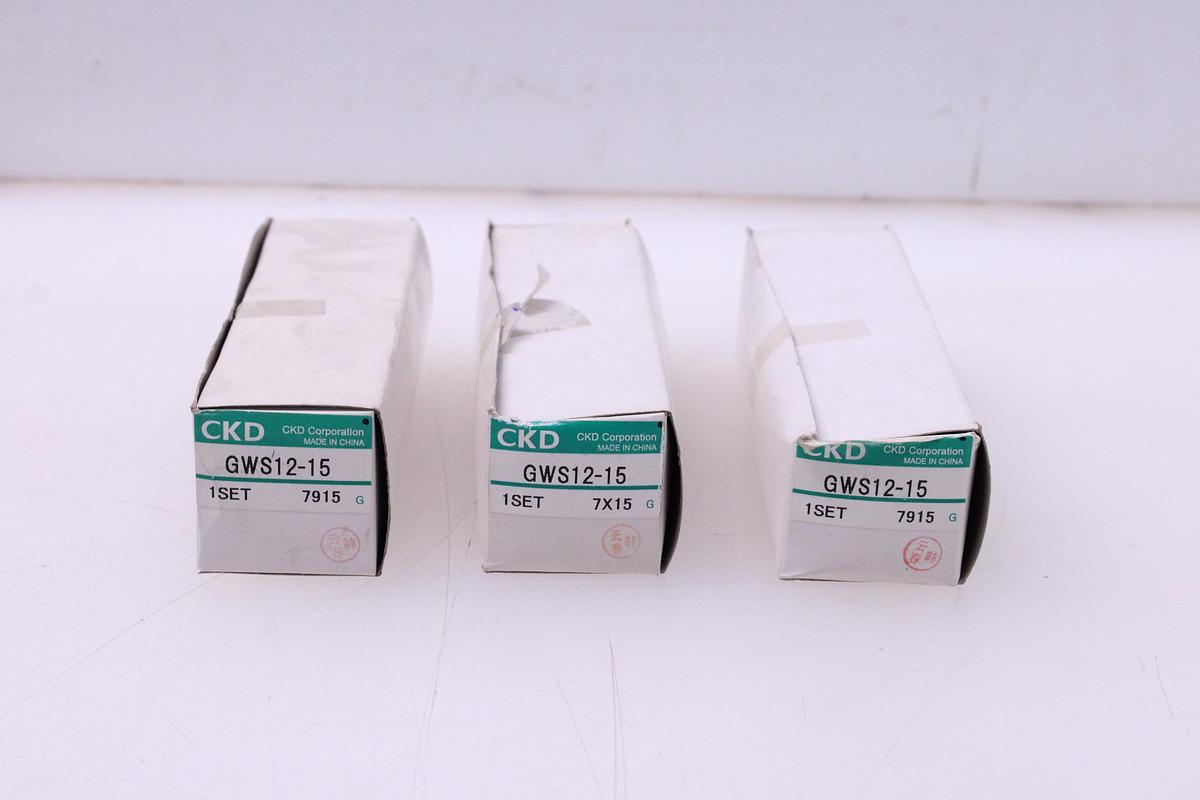

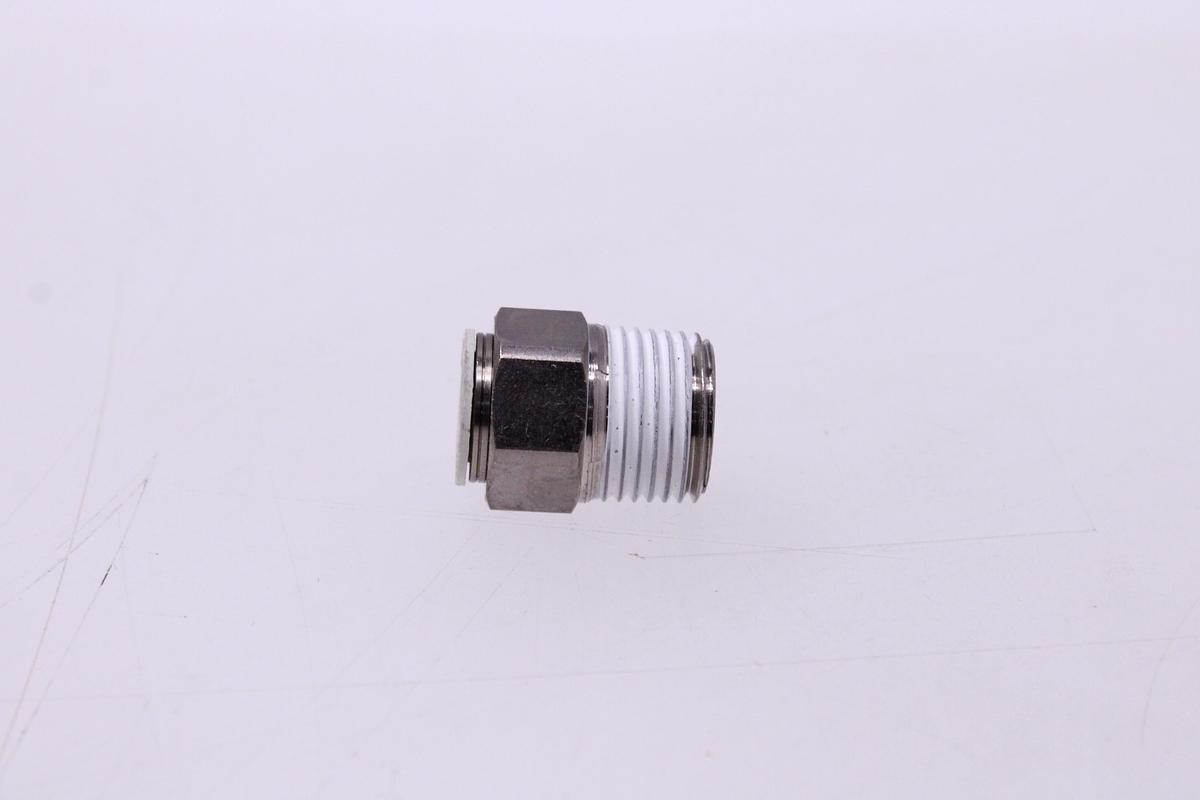

Straight M12 Compact Connectors 1/2" NPT - 27 Units CKD GWS12-15 Condition: New Includes: * 2 Boxes of 10 Units * 1 Box of 7 Units Features: * Series: GWS — CKD ‘New Joint’ connectors. * Application: Connection between pneumatic tube and threaded port in compressed air system. * Compatible tube diameter: 12 mm. * Connection thread size: R1/2 (BSP male thread) — standard variant. * Maximum working pressure: Approximately 1.0 MPa (~10 bar). * Pressure range: From -100 kPa to 1.0 MPa. * Fluid operating temperature: -10 °C to +60 °C (no freezing). * Working fluid: Compressed air.

Specifications

ManufacturerCKD
ModelGWS12-15
ConditionUsed
Stock NumberPAL2497851942
