Rotary Actuator

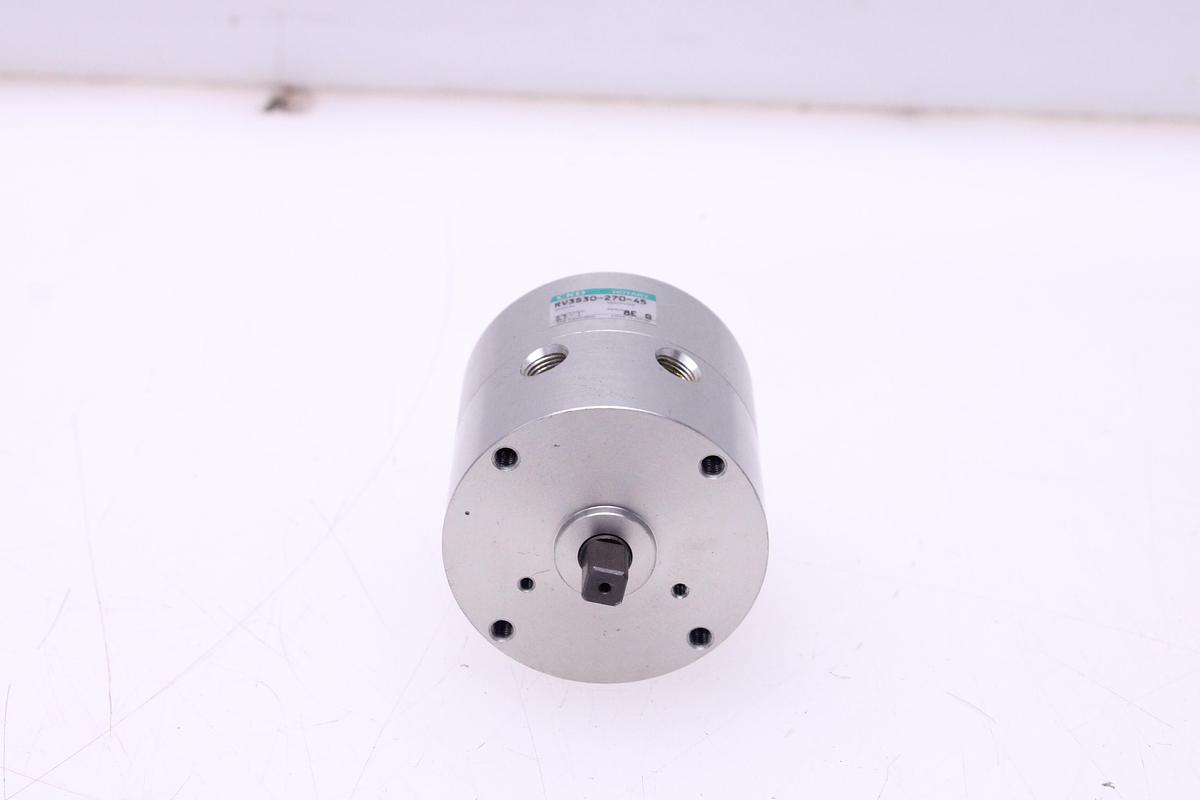

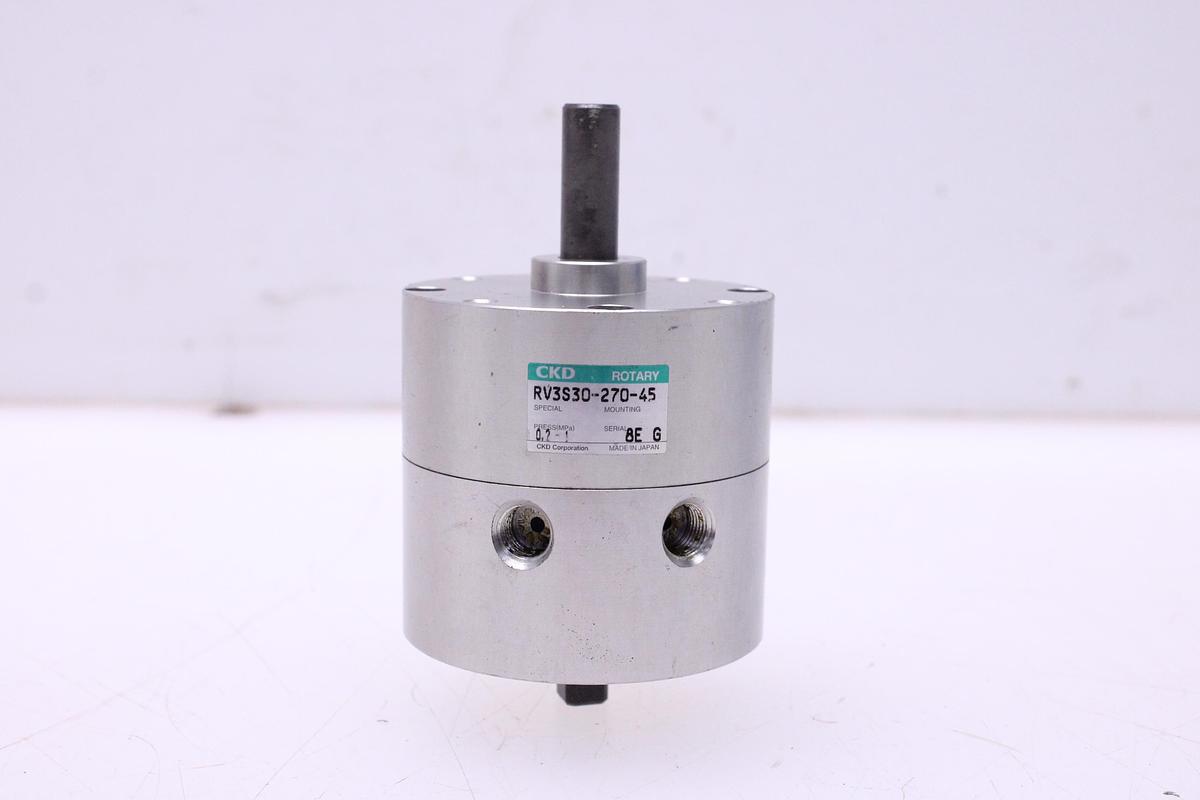

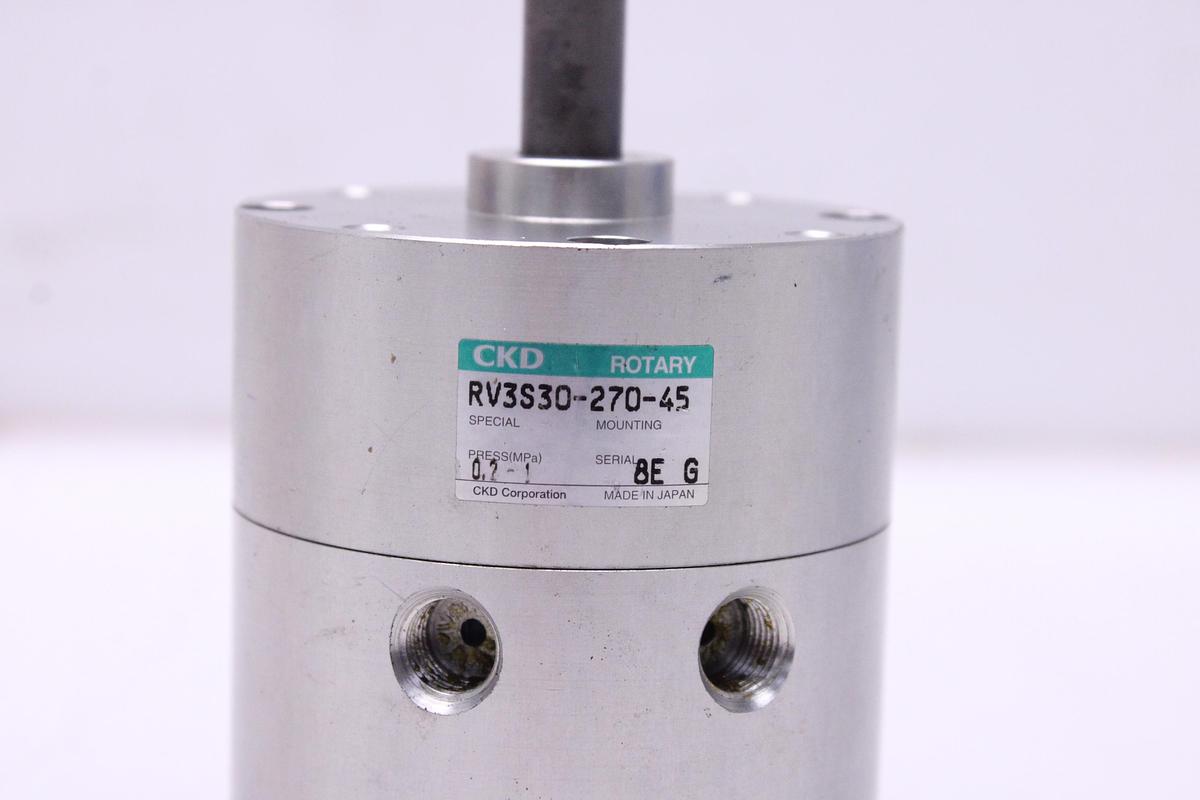

CKD RV3S30-270-45 Rotating Actuator Features: * Type: Pneumatic rotary actuator with a single vane mechanism. * Series: CKD RV3S. * Nominal bore/size: Series 30 (size and torque indicative in the series). * Swing angle: 270 °. * Swing origin: 45 ° (reference starting point of rotation). * Working fluid: Compressed air. * Maximum working pressure: up to 1.0 MPa (≈ 10 bar). * Proof pressure: up to 1.5 MPa (≈ 15 bar). * Ambient temperature: suitable for standard industrial use with dry air (can reach up to ~80 °C with dry/conditioned air). * Port connections: typically Rc 1/8.
