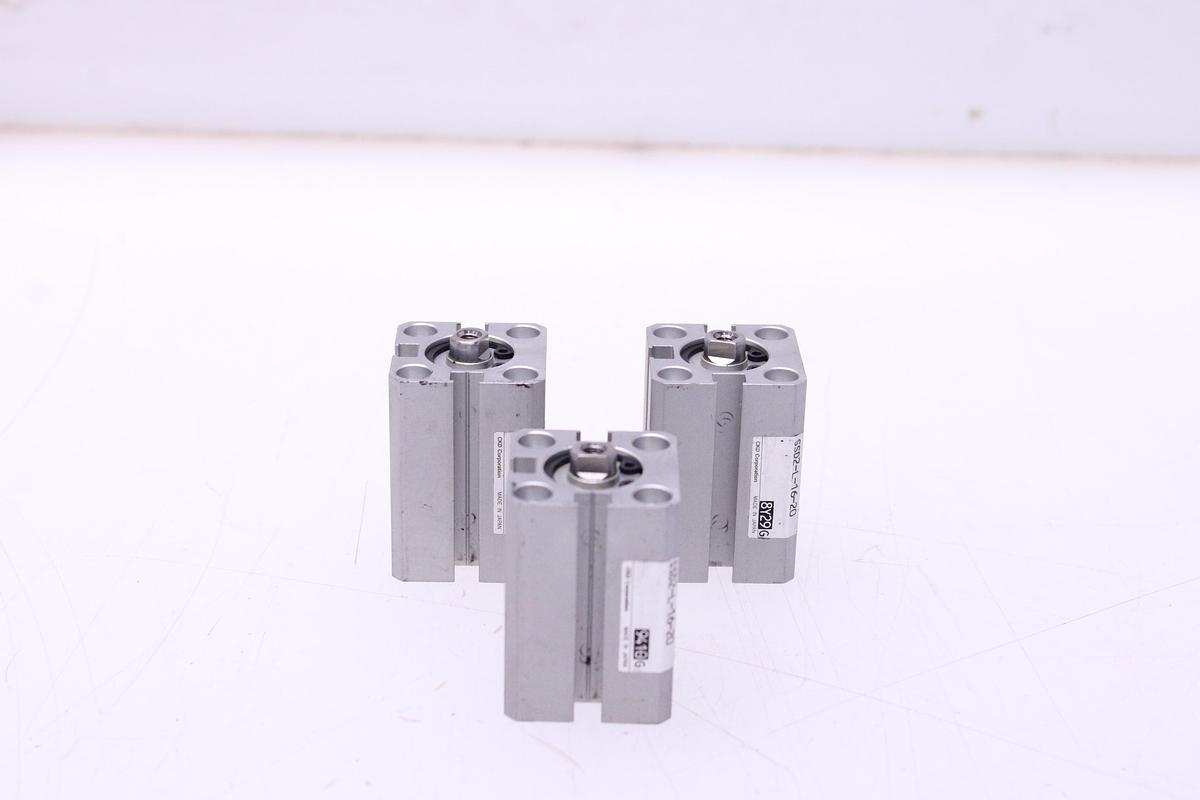

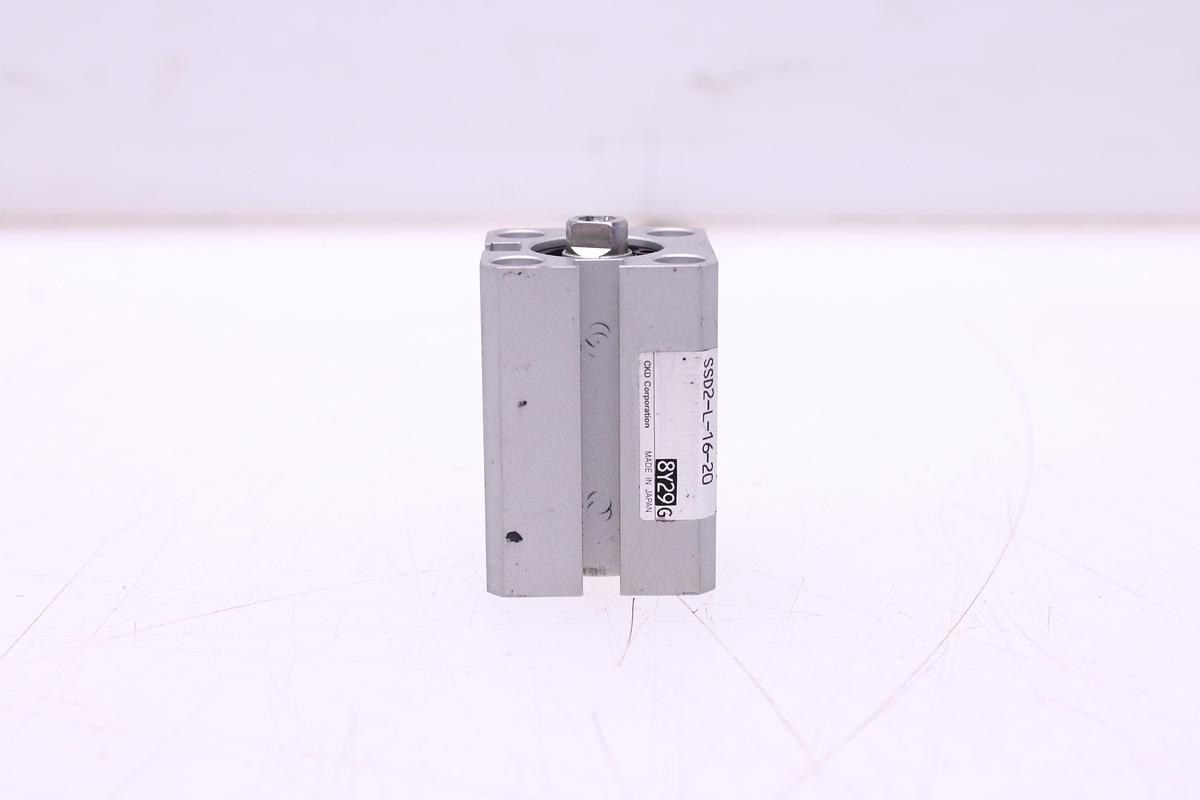

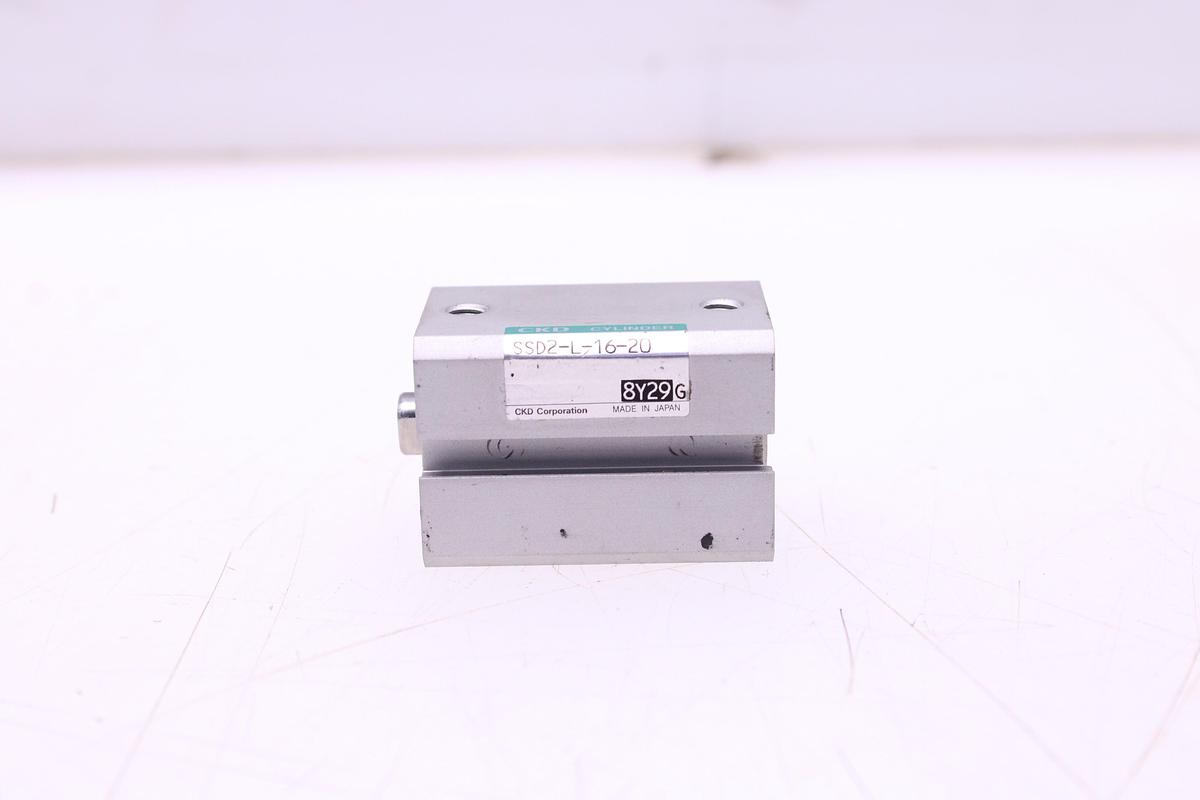

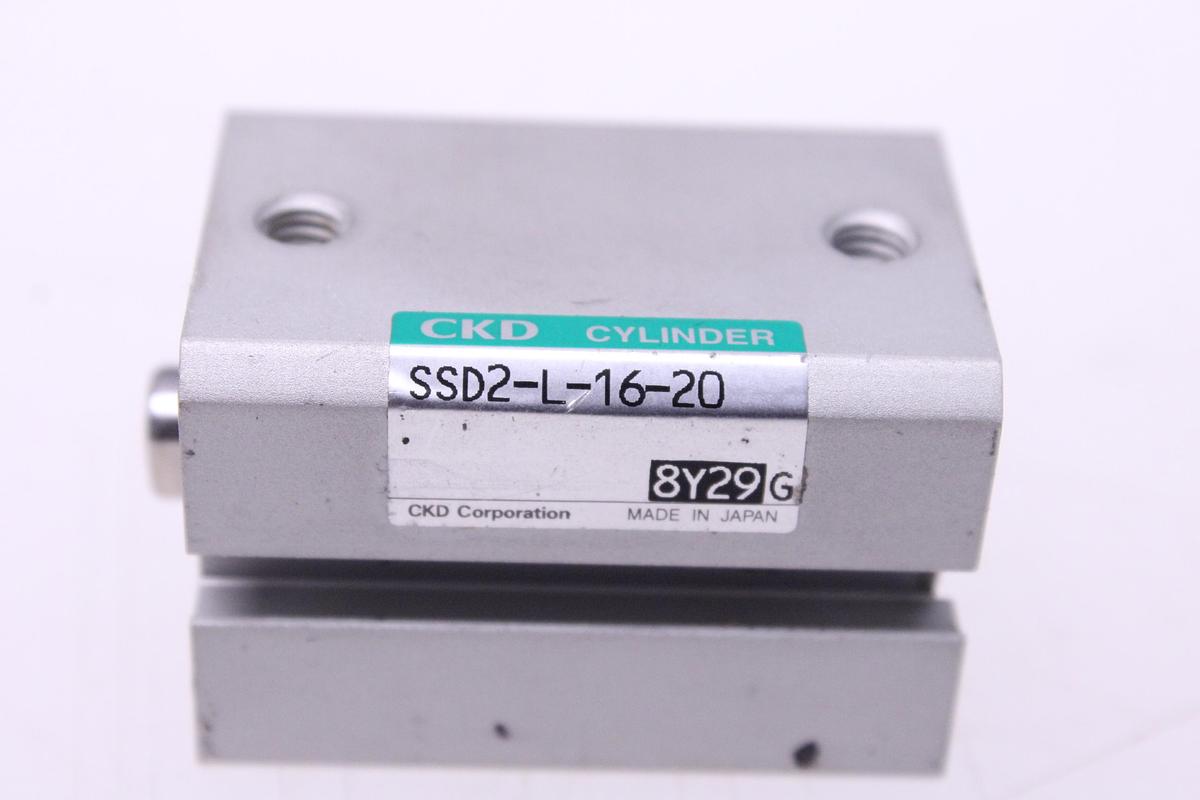

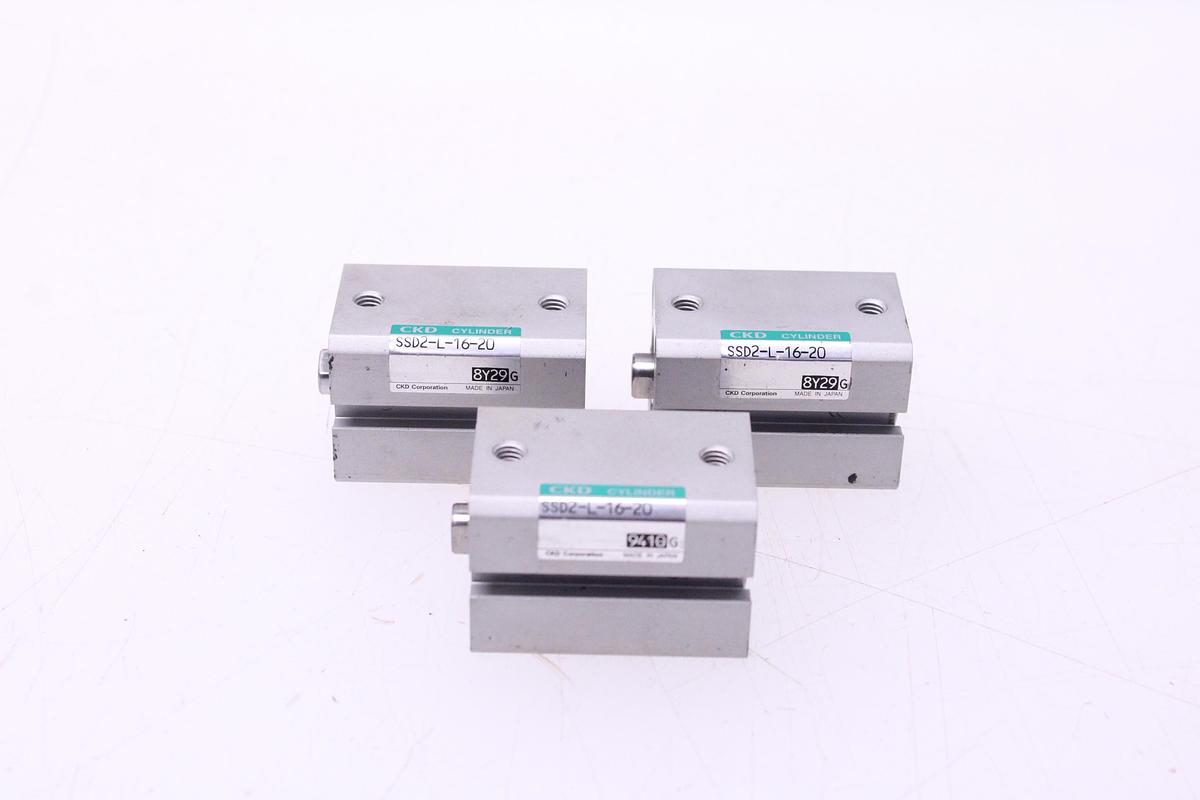

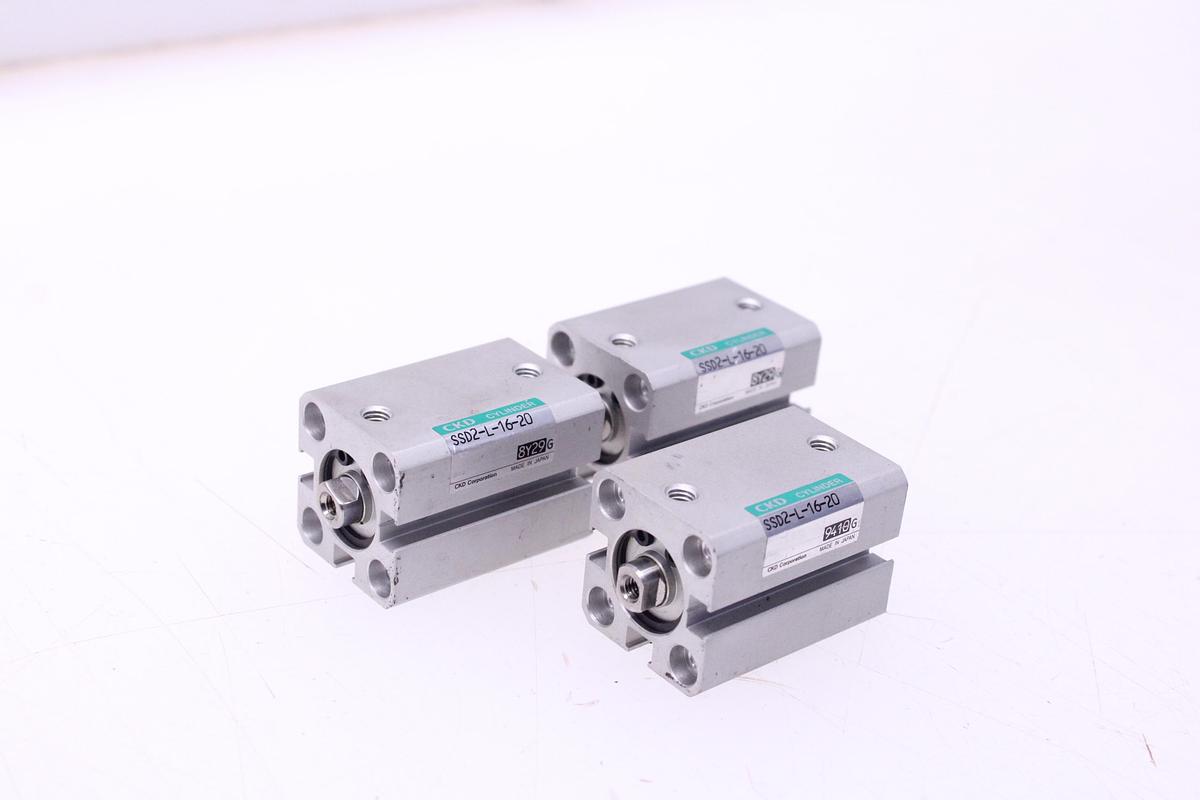

Pneumatic Cylinder CKD SSD2-L-16-20 - 3 Units

Pneumatic Cylinder CKD SSD2-L-16-20 - 3 Units

€137

Description

CKD SSD2-L-16-20 Pneumatic Cylinder Characteristics: Type: Double-acting compact cylinder with a single rod (air push and pull). Series: SSD2-L (with magnet for mounting switches/sensors). Piston bore: 16 mm. Stroke: 20 mm. Working fluid: Compressed air. Operating pressure: Up to approximately 1 MPa (≈10 bar) maximum, with typical minimum pressure of 0.1 MPa. Service temperature: Approximately -10 °C to +60 °C (no freezing). Sensor mounting: Prepared for magnetic switches in most SSD2-L variants. Mechanical options: Rod thread finish, supports or mounting types depending on specific variant.

Specifications

ManufacturerCKD
ModelSSD2-L-16-20
ConditionUsed
Stock NumberPAL2497851989
